Enerpac RSM50 Flat-Jac Cylinder 5 ton 0.25 inches Stroke

Product Description

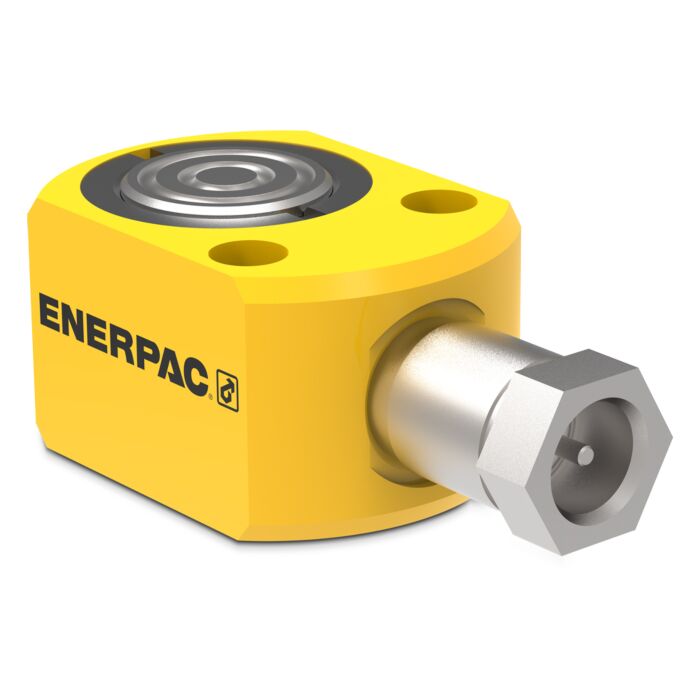

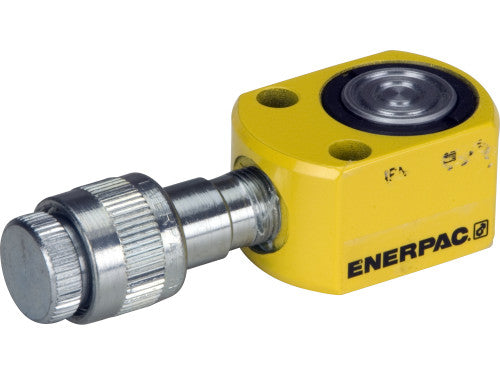

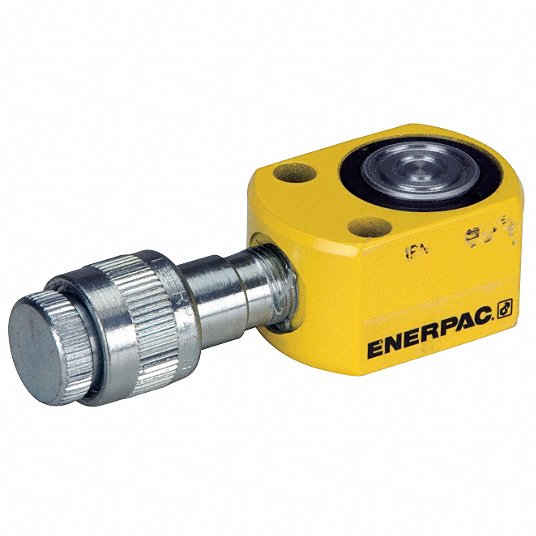

The ENERPAC RSM50 Flat-Jac Cylinder is a single-acting, low-height hydraulic cylinder with a 5-ton capacity and a 0.25" stroke length. Designed for use in confined spaces, this hydraulic ram is made of steel and can handle pressures up to 10,000 psi. It is suitable for general lifting and production applications.

• Compact, flat design for use where other cylinders will not fit
• Mounting holes permit easy fixturing
• Baked enamel finish for increased corrosion resistance

Product Highlights

Ideal for applications where space is limited, this cylinder provides reliable performance in a compact format.

Product Information

Standard Information

• Brand: ENERPAC
• Manufacturer Part Number: RSM50
• Country of Origin: China

Technical Specifications

• Brand: ENERPAC
• MPN: RSM50
• Item [Specifications]: Hydraulic Ram
• Type [Specifications]: Flat
• Handle [Specifications]: No
• Series [Specifications]: RSM
• Includes [Specifications]: Dust Cap, Female Coupler
• Oil Capacity [Specifications]: 0.25 cu. in.
• Outside Dia. [Specifications]: 2.31 in x 1.63 in
• Plunger Dia. [Specifications]: 1 in
• Body Material [Specifications]: Steel
• Cylinder Type [Specifications]: Low Profile
• Max. Pressure [Specifications]: 10,000 psi
• Stroke Length [Specifications]: 1/4 in
• Effective Area [Specifications]: 0.99 sq. in.
• Extended Height [Specifications]: 1.53 in
• Weight Capacity [Specifications]: 5 tons
• Center Hole Dia. [Specifications]: 1 1/8 in
• Nominal Capacity [Specifications]: 5 ton
• Retracted Height [Specifications]: 1.28 in
• Oil Capacity Push [Specifications]: 0.25 cu in
• Max. Push Capacity [Specifications]: 5 ton
• Effective Push Area [Specifications]: 0.99 sq in
• Nominal Stroke Length [Specifications]: 1/4 in
• Single Acting/Double Acting [Specifications]: Single Acting
• Country of Origin (subject to change) [Specifications]: China
• Maximum Operating Pressure (psi): 10,000
• Capacity Class (tonnage): 5
• Maximum Cylinder Capacity Advance (short tons): 4.9
• Collapsed Height A (in): 1.28
• Extended Height B (in): 1.53
• Return Type: Single-Acting, Spring Return
• Plunger Type: Solid
• Material: Steel
• Cylinder Effective Area Advance (in 2 ): 0.99
• Oil Capacity Advance (in 3 ): 0.25
• Surface Treatment: Paint
• Coupler: AR400 Coupler
• Tons: 5
• Stroke: 0.25
• Center Hole Diameter: 1-1/8 in
• UNSPSC: 27121602
• Model: RSM50
• Series: RSM
• Product Lines: Industrial Tools
• Web Status: O
• Product Alias: RSM-50
