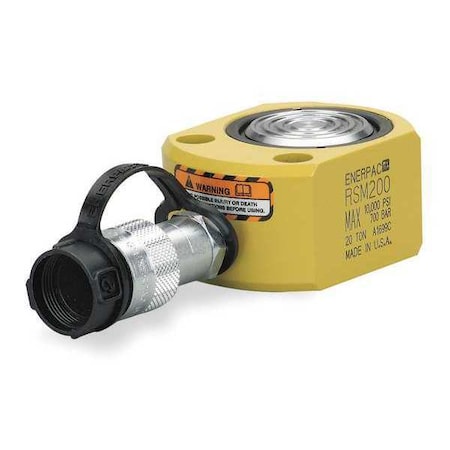

Enerpac RSM200 Flat-Jac Cylinder 20 Ton 7/16in Stroke

Product Description

The Enerpac RSM200 Flat-Jac Cylinder is a high-quality hydraulic solution designed for various lifting and pushing tasks. This model has a 20-ton capacity and operates with a single-acting, low-profile system.

• 20-ton lifting capacity
• Steel construction for durability
• Single-acting hydraulic system

Product Highlights

This cylinder features a low-profile design, making it suitable for tight spaces. It includes a dust cap and female coupler to ensure reliable operation and longevity.

Product Information

Standard Information

• Brand: Enerpac
• MPN: RSM200
• UPC: 662005302369

Technical Specifications

• Plunger Diameter: 2 inches
• Base Mounting Hole Counter Bore Depth: 0.39 inches
• Base to Advance Port: 0.75 inches
• Cylinder Bore Diameter: 2.38 inches
• Outside Diameter: 4 inches x 3 inches
• Extended Height: 2.47 inches
• Plunger to Base: 1.56 inches
• Collapsed Height: 2.03 inches
• Base Mounting Hole Pitch: 1.94 inches
• Base Mounting Hole Diameter: 0.4 inches
• Center Hole Diameter: 2.38 inches
• Stroke Length: 3/8 inches
• Effective Area: 4.43 square inches
• Oil Capacity Push: 1.94 cubic inches
• Max. Pressure: 10,000 psi
