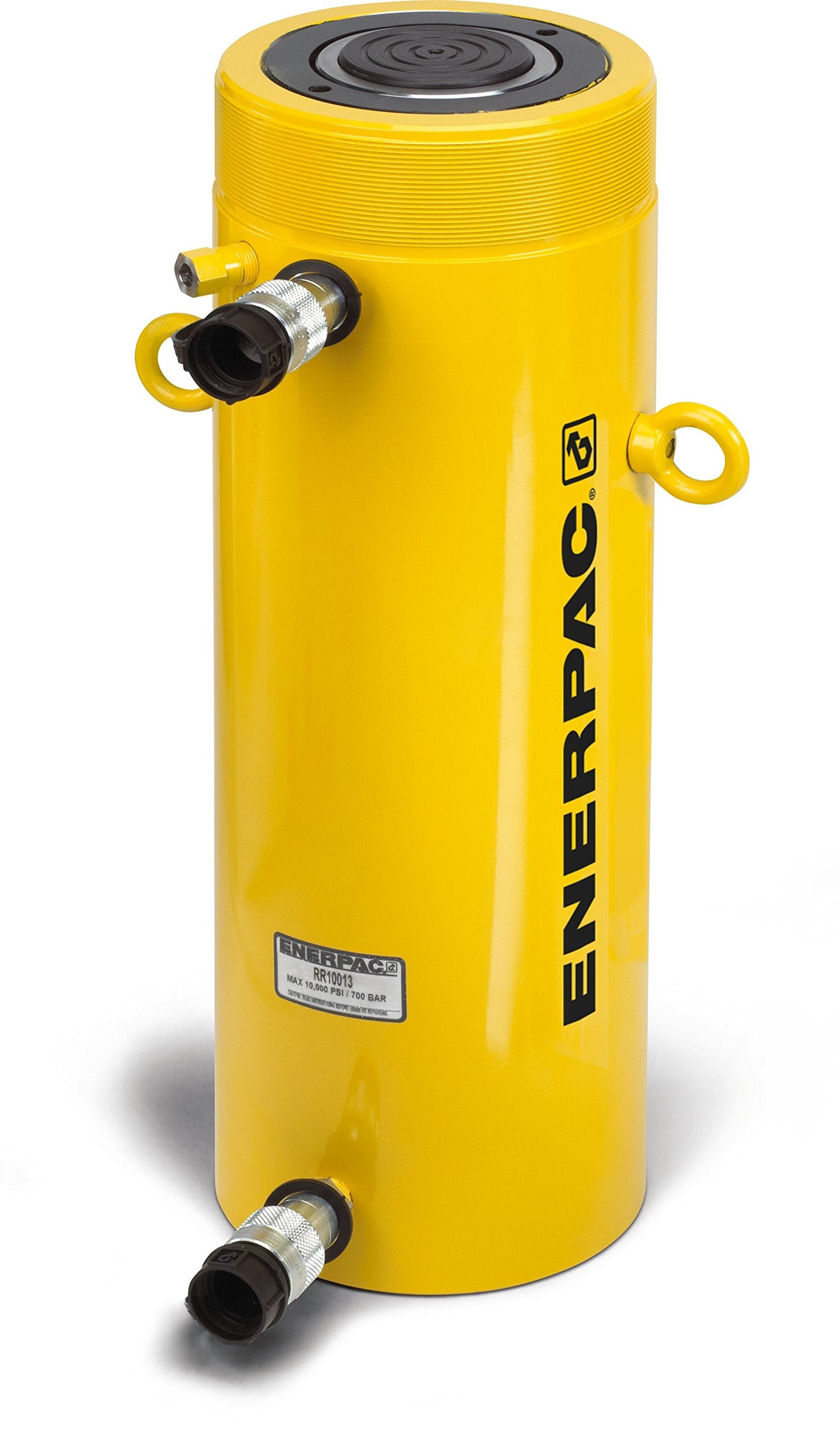

Enerpac RR308 Double-Acting Hydraulic Cylinder with 30 Ton Capacity, 8.25 in Stroke

Product Description

The Enerpac RR308 is a double-acting hydraulic cylinder designed for high capacity lifting. It offers a capacity of thirty tons and a stroke length of eight point two five inches, providing effective performance for various lifting tasks. This hydraulic cylinder features a solid plunger and operates with a maximum pressure of ten thousand psi.

• 30 ton capacity
• 8.25 inch stroke length
• 10,000 psi maximum operating pressure

Product Highlights

The RR308 is suitable for general-purpose use in construction and heavy machinery applications. Its robust steel construction ensures durability in demanding conditions.

Product Information

Standard Information

• Brand: Enerpac
• Model/MPN: RR308

Technical Specifications

• Hydraulic Ram: Double-Acting
• Stroke Length: 8.25 in
• Max. Pressure: 10,000 psi
• Oil Capacity: 53.67 cu in
• Retracted Height: 15.25 in
• Extended Height: 23.5 in
• Effective Area: 6.51 sq in
• Plunger Dia.: 2.13 in
• Base Bolt Circle Dia.: 2.88 in
• Center Hole Dia.: 9.5 in
