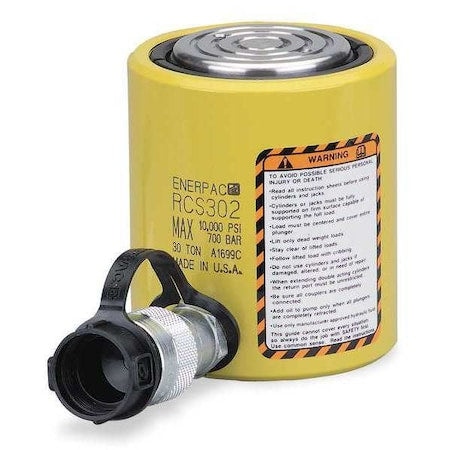

Enerpac RCS302 Single Acting Low Height Hydraulic Cylinder 30 Ton Capacity

Product Description

The Enerpac RCS302 is a single-acting hydraulic cylinder designed for applications requiring a low height with significant lifting power. This hydraulic ram has a capacity of thirty tons, making it ideal for heavy lifting tasks in various industries. The cylinder features a stroke length of two point four four inches, providing adequate reach for different lifting requirements.

• Single-acting design for straightforward operation
• Built from steel for durability
• Compact size allows use in tight spaces

Product Highlights

This hydraulic cylinder is suited for general-purpose lifting needs. It is effective in construction and maintenance tasks, providing reliable performance under high pressure.

Product Information

Standard Information

• Brand: Enerpac
• MPN: RCS302

Technical Specifications

• Nominal Capacity: 30 tons
• Max. Push Capacity: 30 tons
• Stroke Length: 2.44 inches
• Effective Push Area: 6.49 square inches
• Max. Pressure: 10,000 psi
• Retracted Height: 4.63 inches
• Extended Height: 7.07 inches
• Outside Diameter: 4 inches
• Plunger Diameter: 2.62 inches
• Plunger Thread Size: M4
• Base Bolt Circle Diameter: 1.56 inches
• Center Hole Diameter: 2.625 inches
• Includes: Dust cap, female coupler
• Body Material: Steel
