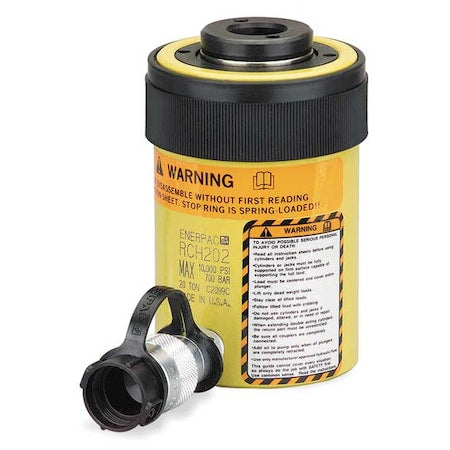

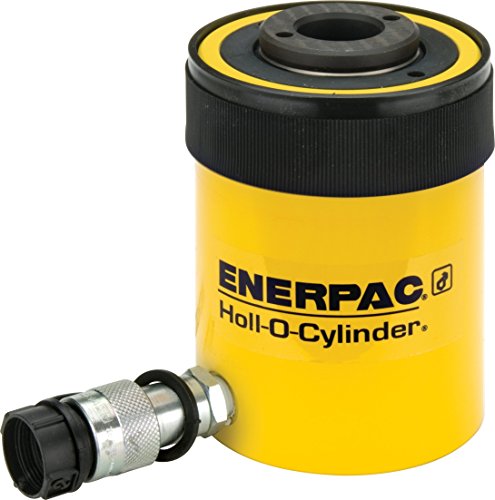

Enerpac RCH-202 Single-Acting Hollow-Plunger Hydraulic Cylinder with 20 Ton Capacity

Product Description

The Enerpac RCH-202 is a single-acting hollow-plunger hydraulic cylinder designed for lifting and pushing applications. With a maximum capacity of twenty tons, this robust cylinder is suitable for various industrial tasks. The nominal stroke length is two inches, allowing for efficient operations in confined spaces.

• Capacity: 20 tons
• Stroke Length: 2 inches
• Effective Push Area: 4.73 square inches

Product Highlights

This hydraulic cylinder is crafted from steel, providing durability for demanding tasks. It features a single port design, allowing for quick setup and operation. The cylinder operates at a maximum pressure of 10,000 psi, ensuring reliable performance under load.

Product Information

Standard Information

• Brand: Enerpac
• Model Number: RCH-202

Technical Specifications

• Body Material: Steel
• Max. Pressure: 10,000 psi
• Retracted Height: 6.38 inches
• Extended Height: 8.37 inches
• Outside Diameter: 3.88 inches
• Plunger Diameter: 2.13 inches
• Thread Sizes: Plunger thread 1-9/16-16, Collar thread 3-7/8-12
• Base Mounting Thread Size: 3/8-16
