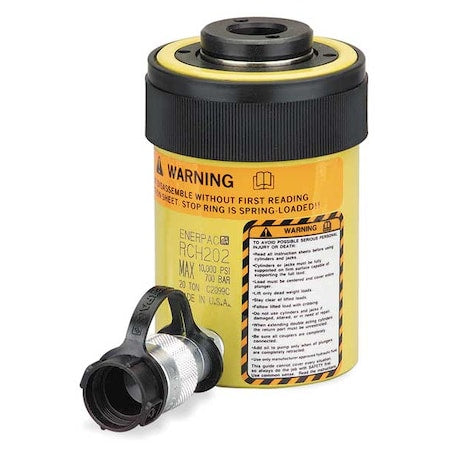

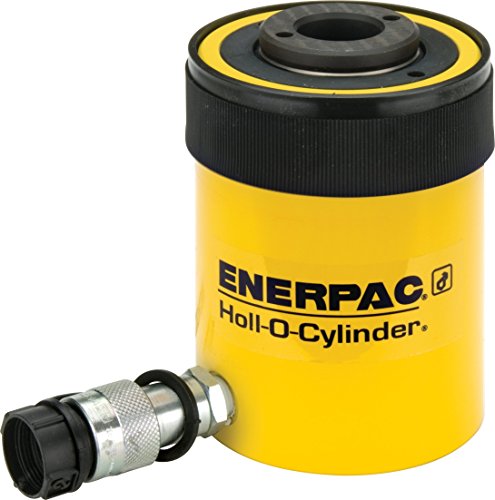

Enerpac RCH-202 Single-Acting Hollow-Plunger Hydraulic Cylinder 20 Ton Capacity 2.00 Stroke Length

Product Description

The Enerpac RCH-202 is a single-acting hollow-plunger hydraulic cylinder with a capacity of twenty tons. This hydraulic ram is suitable for various lifting tasks within industrial applications. It features a stroke length of two inches, allowing for efficient operation in tight spaces.

• Rated capacity of twenty tons for heavy lifting
• Max pressure of ten thousand psi for powerful performance
• Includes a coupler and dust cap for protection

Product Highlights

This hydraulic cylinder is designed for robust lifting and provides reliable performance across multiple uses in the field. The package includes essential accessories for immediate use.

Product Information

Standard Information

• Brand: Enerpac
• Product Type: Utility Jack

Technical Specifications

• Nominal Capacity: 20 tons
• Max. Pressure: 10,000 psi
• Stroke Length: 2 inches
• Retracted Height: 6.38 inches
• Extended Height: 8.37 inches
• Outside Diameter: 3.88 inches
• Plunger Diameter: 2.13 inches
• Oil Capacity: 9.46 cubic inches
• Effective Push Area: 4.72 square inches
• Body Material: Steel
• Base Mounting Thread Size: 3/8-16
