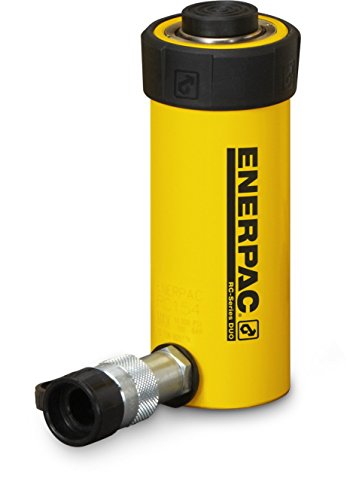

Enerpac RC-57 Single-Acting Alloy Steel Hydraulic Cylinder with 5 Ton Capacity Single Port 7 Stroke

Product Description

The Enerpac RC-57 is a single-acting hydraulic cylinder designed for lifting applications. It has a nominal capacity of five tons and provides a stroke length of seven inches. The cylinder's robust steel construction ensures durability and reliability during operation.

• Capacity: 5 tons
• Stroke Length: 7 inches
• Max Pressure: 10,000 psi

Product Highlights

This hydraulic cylinder is suitable for a wide range of industrial and mechanical applications where lifting or pushing is required. The RC series is known for ease of use and includes vital accessories like couplers and dust caps.

Product Information

Standard Information

• Brand: Enerpac
• MPN: RC-57

Technical Specifications

• Item: Hydraulic Ram
• Type: General Purpose
• Handle: Yes
• Series: RC
• Includes: Coupler, Dust Cap
• Thread Size: 1/4-20
• Oil Capacity: 6.96 cu. in.
• Outside Diameter: 1.5 inches
• Plunger Diameter: 1 inch
• Body Material: Steel
• Cylinder Type: General Purpose
• Max Pressure: 10,000 psi
• Stroke Length: 7 inches
• Effective Area: 1.00 sq. in.
• Extended Height: 17.75 inches
• Weight Capacity: 5 tons
• Bolt Circle Diameter: 1 inch
• Center Hole Diameter: 1 inch
• Nominal Capacity: 5 ton
• Retracted Height: 10.75 inches
• Oil Capacity Push: 6.96 cu in
• Collar Thread Size: 1-1/2-16
• Max Push Capacity: 5 ton
• Effective Push Area: 0.99 sq in
• Plunger Thread Size: 3/4-16
• Base Bolt Circle Diameter: 1 inch
• Nominal Stroke Length: 7 inches
• Single Acting: Yes
• Country of Origin: China
