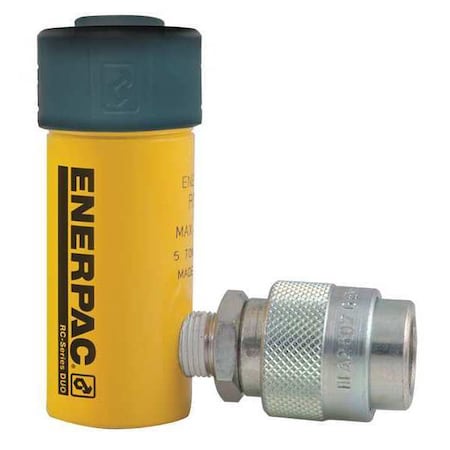

Enerpac RC51 Hydraulic Cylinder 5 Ton Capacity 1 Inch Stroke

Product Description

The Enerpac RC51 Hydraulic Cylinder, with a 1-inch stroke and a maximum capacity of 5 tons, is engineered for general-purpose applications. Built from steel, this single-acting cylinder is designed to meet 10,000 psi maximum pressure. It includes a coupler and dust cap.

• 5-ton capacity
• 1-inch stroke
• 10,000 psi maximum pressure

Product Highlights

This hydraulic cylinder is ideal for industrial and automotive use. Made from steel, it offers durability and reliability for heavy-duty tasks. The coupler and dust cap provide added convenience and protection.

Product Information

Standard Information

• Type: General Purpose
• Series: RC
• Includes: Coupler, Dust Cap

Technical Specifications

• Max. Pressure: 10,000 psi
• Stroke Length: 1 in
• Effective Area: 1.00 sq. in.
• Extended Height: 5.53 in
• Weight Capacity: 5 tons
• Bolt Circle Dia.: 1 in
• Center Hole Dia.: 1 in
• Nominal Capacity: 5 ton
• Retracted Height: 4.34 in
• Oil Capacity Push: 0.99 cu in
• Collar Thread Size: 1-1/2-16
• Max. Push Capacity: 5 ton
• Effective Push Area: 0.99 sq in
• Plunger Thread Size: 3/4-16
• Base Bolt Circle Dia.: 1 in
• Nominal Stroke Length: 1 in
• Single Acting/Double Acting: Single Acting
• Country of Origin (subject to change): China
