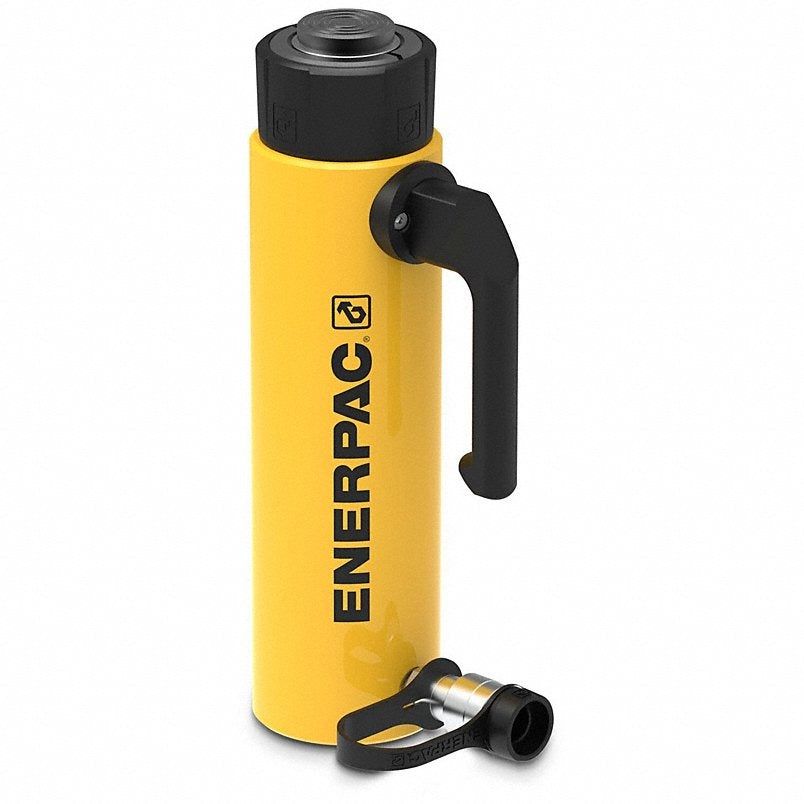

Enerpac rc308 Hydraulic Ram 30 Ton 8 in Stroke Steel

Product Description

The ENERPAC rc308 is a single-acting, general-purpose hydraulic ram designed to lift and push heavy loads when paired with a compatible hydraulic pump. Rated at 30 tons nominal capacity with a maximum working pressure of 10,000 psi, this ram delivers controlled, high-force output across a broad range of industrial and construction applications. The steel body provides durability under repeated load cycles. With a stroke length of 8 inches nominal and an effective push area of 6.49 square inches, it suits tasks that require precise, powerful linear force in a compact envelope. Licensed contractors and industrial maintenance technicians are the primary installers.

This ram is suited for general-purpose pressing, lifting, pushing, and bending operations in industrial maintenance, construction, and heavy equipment service environments. It attaches directly to a single-acting hydraulic pump via standard hydraulic couplers. The retracted height of 15.25 inches and extended height of 23.5 inches allow the ram to fit within typical lift setups without requiring excessive clearance. Its outside diameter of 4 inches and plunger diameter of 2.25 inches are standard dimensions for this capacity class. The unit ships with a coupler and dust cap included.

Key Features

• 30-ton nominal and maximum push capacity at up to 10,000 psi working pressure
• Single-acting cylinder returns by gravity or external spring load
• Steel body construction rated for heavy industrial use
• 8-inch nominal stroke with 8.25-inch actual stroke length
• Includes coupler and dust cap for immediate connection to a hydraulic pump
• Plunger thread size 1-1/2 inches-16 and collar thread size 3-5/16 inches-12 for accessory compatibility

Compatibility

Designed as an OEM-style single-acting hydraulic ram compatible with standard 10,000 psi hydraulic pump systems using industry-standard couplers.

Installation Notes

Installation and operation of hydraulic rams of this capacity should be performed by qualified industrial maintenance technicians or hydraulic system professionals. Always depressurize the hydraulic system fully before connecting or disconnecting the ram. Ensure the pump, hoses, and fittings are rated for 10,000 psi before use. Keep the dust cap in place when the coupler is disconnected to prevent contamination of the hydraulic port.

Technical Specifications

• Nominal Capacity: 30 ton
• Max Push Capacity: 30 ton
• Max Pressure: 10,000 psi
• Effective Push Area: 6.49 sq in
• Stroke Length (Nominal): 8 inches
• Stroke Length (Actual): 8.25 inches
• Oil Capacity Push: 53.56 cu in
• Retracted Height: 15.25 inches
• Extended Height: 23.5 inches
• Outside Diameter: 4 inches
• Plunger Diameter: 2.25 inches
• Plunger Thread Size: 1-1/2 inches-16
• Collar Thread Size: 3-5/16 inches-12
• Center Hole Diameter: 2.25 inches
• Cylinder Type: General Purpose
• Acting Type: Single Acting
• Body Material: Steel
• Includes: Coupler, Dust Cap
• Country of Origin: China (subject to change)

Standard Information

• Brand: ENERPAC
• Manufacturer Part Number: rc308
