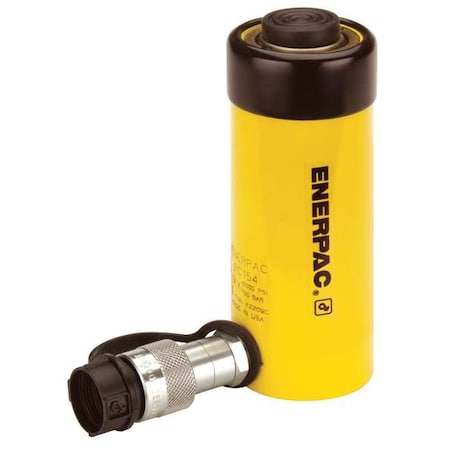

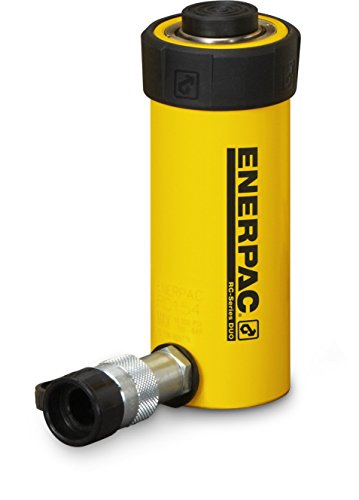

Enerpac RC154 Single-Acting Alloy Steel Hydraulic Cylinder 15 Ton Capacity 4 Stroke

Product Description

The Enerpac RC154 hydraulic cylinder is designed for single-acting applications and features a robust alloy steel construction. It has a 15-ton capacity and a 4-inch stroke. The RC154 model offers reliable performance for various lifting and pressing tasks.

• Single-acting design with 15-ton capacity
• 4-inch stroke length for extended reach
• Constructed from durable alloy steel

Product Highlights

This hydraulic cylinder is ideal for use in lifting, pressing, and other industrial applications where reliable performance is required. With a maximum pressure of 10,000 psi, it ensures efficient operation under heavy loads.

Product Information

Standard Information

• Brand: Enerpac
• MPN: RC154
• Capacity: 15 tons
• Stroke Length: 4 inches

Technical Specifications

• Item: Hydraulic Ram
• Type: General Purpose
• Series: RC
• Weight: 11 lb
• Includes: Coupler, Dust Cap
• Thread Size: 3/8-16
• Oil Capacity: 12.57 cu. in.
• Outside Diameter: 2.75 in
• Plunger Diameter: 1.63 in
• Body Material: Steel
• Cylinder Type: General Purpose
• Max. Pressure: 10,000 psi
• Effective Area: 3.14 sq. in.
• Extended Height: 11.88 in
• Weight Capacity: 15 tons
• Bolt Circle Diameter: 1.88 in
• Center Hole Diameter: 1 5/8 in
• Nominal Capacity: 15 ton
• Retracted Height: 7.88 in
• Oil Capacity Push: 12.57 cu in
• Collar Thread Size: 2-3/4-16
• Max. Push Capacity: 15 ton
• Effective Push Area: 3.14 sq in
• Plunger Thread Size: 1-8
• Base Bolt Circle Diameter: 1.88 in
• Nominal Stroke Length: 4 in
• Country of Origin: China
