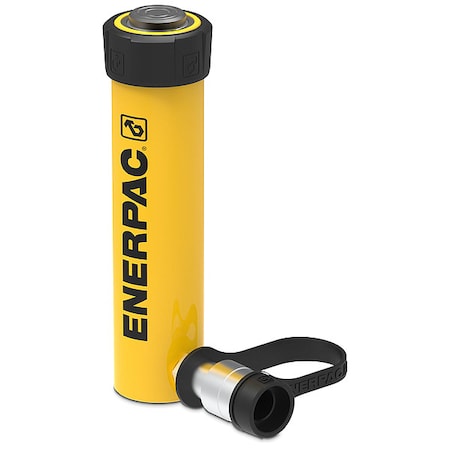

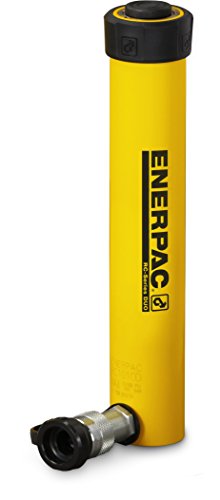

Enerpac RC-106 Single-Acting Alloy Steel Hydraulic Cylinder with 10 Ton Capacity, 6.13 in Stroke

Product Description

The Enerpac RC-106 is a robust hydraulic cylinder with a ten ton capacity, suitable for various lifting applications. This single-acting cylinder features a six point thirteen inches stroke length and is crafted from durable steel. Ideal for professionals in the construction and heavy equipment industries, the RC-106 provides essential performance for lifting tasks.

• Ten ton nominal capacity
• Max pressure of ten thousand psi
• Includes coupler and dust cap

Product Highlights

The Enerpac RC-106 is designed for heavy duty applications, with a focus on reliability and performance.

Product Information

Standard Information

• Type: Single Acting
• Body Material: Steel

Technical Specifications

• Nominal Capacity: 10 ton
• Max. Pressure: 10,000 psi
• Stroke Length: 6 1/8 in
• Effective Push Area: 2.24 sq in
• Oil Capacity Push: 13.7 cu in
• Retracted Height: 9.75 in
• Extended Height: 15.33 in
• Plunger Diameter: 1.5 in
• Collar Thread Size: 2-1/4 in-14
• Base Bolt Circle Diameter: 1.56 in
