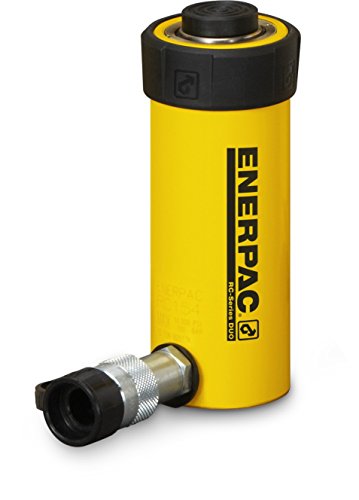

Enerpac RC-104 Single-Acting Alloy Steel Hydraulic Cylinder 10 Ton Capacity 4.13 Stroke

Product Description

The Enerpac RC-104 is a single-acting alloy steel hydraulic cylinder with a 10-ton capacity and a 4.13-inch stroke. This hydraulic cylinder is suitable for various applications in industrial and scientific sectors.

• 10-ton capacity
• 4.13-inch stroke
• Single-acting operation

Product Highlights

Enerpac RC-104 Single-Acting Alloy Steel Hydraulic Cylinder is ideal for lifting and pushing applications. It features a durable steel construction and a 4.13-inch stroke length.

Product Information

Standard Information

• Brand: Enerpac
• Model: RC-104
• MasterSKU: 6887539376239

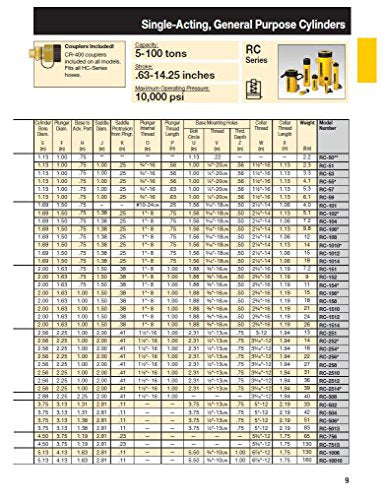

Technical Specifications

• Capacity: 10 tons
• Stroke Length: 4 1/8 inches
• Effective Push Area: 2.24 square inches
• Max. Pressure: 10,000 psi
• Oil Capacity Push: 9.23 cubic inches
• Retracted Height: 6.75 inches
• Extended Height: 10.33 inches
• Outside Diameter: 2.25 inches
• Plunger Diameter: 1.5 inches
• Plunger Thread Size: 1-8
• Collar Thread Size: 2 1/4 - 14
• Base Bolt Circle Diameter: 1.56 inches
• Center Hole Diameter: 1.5 inches
• Series: RC
• Includes: Coupler, Dust Cap
