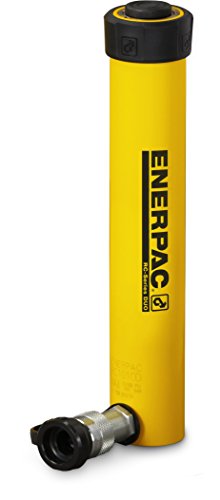

Enerpac RC-1010 Single-Acting Alloy Steel Hydraulic Cylinder with 10 Ton Capacity, 10.13 Inch Stroke

Product Description

The Enerpac RC-1010 Hydraulic Cylinder is a single-acting, steel cylinder designed for various lifting applications. It provides a maximum load capacity of 10 tons and a 10.13 inch stroke.

• Single-acting hydraulic cylinder
• 10 ton load capacity
• 10.13 inch stroke

Product Highlights

This hydraulic cylinder is ideal for lifting heavy objects in industrial settings. The steel construction ensures durability and long-term performance. It is compatible with Enerpac pumps and accessories.

Product Information

Standard Information

• Type: Single Acting Hydraulic Cylinder
• Material: Steel
• Applications: Lifting

Technical Specifications

• MPN: RC-1010
• Capacity: 10 tons
• Stroke Length: 10.13 inches
• Max Pressure: 10,000 psi
• Retracted Height: 13.75 inches
• Extended Height: 23.88 inches
• Effective Push Area: 2.24 square inches
• Oil Capacity Push: 22.65 cubic inches
• Outside Diameter: 2.25 inches
• Plunger Diameter: 1.5 inches
• Plunger Thread Size: 1-8
• Collar Thread Size: 2-1/4-14
• Base Bolt Circle Diameter: 1.56 inches
• Center Hole Diameter: 1.5 inches
• Series: RC
• Includes: Coupler, Dust Cap
