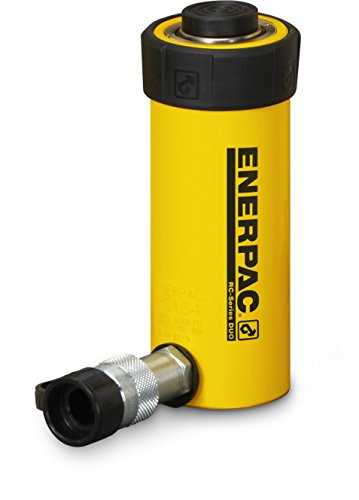

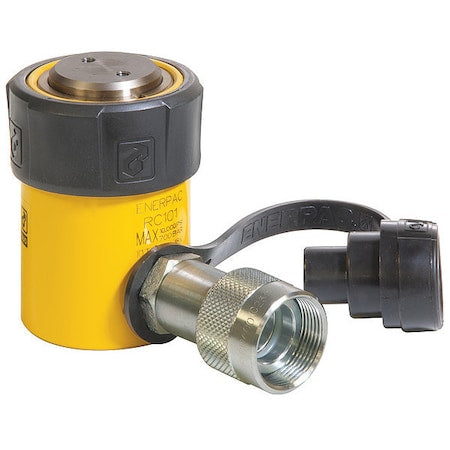

Enerpac RC-101 Single-Acting Alloy Steel Hydraulic Cylinder 10 Ton Capacity 1 Stroke

Product Description

The Enerpac RC-101 is a single-acting hydraulic cylinder with a 10-ton capacity and a 1-inch stroke. Designed for general-purpose use, this cylinder is made from durable alloy steel.

• 10-ton capacity
• 1-inch stroke length
• Made from durable alloy steel

Product Highlights

Ideal for various lifting and pushing tasks, the Enerpac RC-101 hydraulic cylinder offers reliability and performance in a compact design. Suitable for industrial and mechanical applications.

Product Information

Standard Information

• Category: Lifting Cylinders
• Brand: Enerpac

Technical Specifications

• Capacity: 10 tons
• Stroke Length: 1 inch
• Effective Push Area: 2.24 sq in
• Max Pressure: 10,000 psi
• Oil Capacity Push: 2.24 cu in
• Retracted Height: 3.53 inches
• Extended Height: 4.56 inches
• Outside Diameter: 2.25 inches
• Plunger Diameter: 1.5 inches
• Plunger Thread Size: 1-8
• Collar Thread Size: 2-1/4-14
• Base Bolt Circle Diameter: 1.56 inches
• Center Hole Diameter: 1.5 inches
• Series: RC
• Includes: Coupler, Dust Cap
