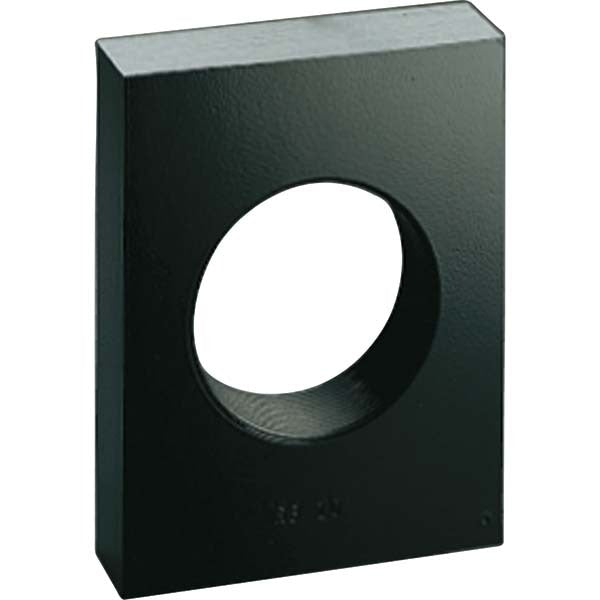

Enerpac RB10 Hydraulic Cylinder Mounting Block

Product Description

The ENERPAC RB10 is a mounting block designed to secure and position ENERPAC RC-series single-acting hydraulic cylinders in fixed installations. This accessory provides a stable base that keeps the cylinder properly aligned during press, push, or lift operations. The block measures 3.5 inches in length, 4.5 inches in width, and 1 inch in height, and weighs 3.51 pounds. It is used wherever a cylinder must be anchored to a work surface, fixture, or fabricated structure rather than held freehand or repositioned between cycles. Hydraulic technicians and maintenance professionals install this block when setting up repetitive-operation hydraulic tooling stations.

The RB10 is suited for industrial maintenance, fabrication, and tooling applications where ENERPAC RC-series cylinders are integrated into fixed or semi-fixed setups. Typical scenarios include hydraulic press frames, component assembly fixtures, and structural straightening rigs. The block accommodates the following ENERPAC cylinder models: RC101, RC102, RC104, RC106, RC108, RC1010, RC1012, and RC1014. It is sold individually as a single unit.

Key Features

• Mounts RC-series cylinders to flat surfaces for repeatable, aligned operation
• Compact profile at 3.5 x 4.5 x 1 inch allows integration into tight fixture layouts
• Compatible with eight RC-series cylinder models from RC101 through RC1014
• Single-unit packaging supports one-for-one replacement or new fixture builds
• Rigid construction maintains cylinder positioning under sustained hydraulic load

Compatibility

Designed for use with ENERPAC RC101, RC102, RC104, RC106, RC108, RC1010, RC1012, and RC1014 single-acting hydraulic cylinders.

Installation Notes

Installation is typically performed by hydraulic technicians or maintenance mechanics familiar with hydraulic cylinder tooling. Before mounting, relieve all hydraulic pressure from the system and ensure the cylinder is fully retracted. Fasten the mounting block to a clean, flat, load-rated surface using appropriately sized fasteners for the application load. Verify cylinder alignment after securing to prevent side-loading during operation.
