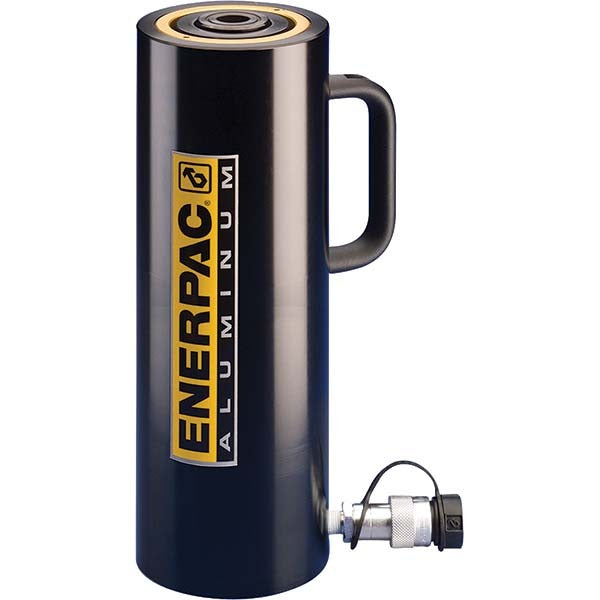

Enerpac RAC1006 Compact Hydraulic Cylinder Base Mount

Product Description

The ENERPAC RAC1006 is a compact hydraulic cylinder designed for single-acting operation in confined or space-limited work envelopes. The body is constructed from black anodized aluminum, offering a corrosion-resistant, lightweight build suited to industrial pressing, clamping, lifting, and positioning applications. The base mounting hole configuration allows the cylinder to be fixed directly to a work surface or fixture plate, keeping it secure under load. Hydraulic technicians and industrial maintenance professionals are the typical installers for this type of cylinder.

The RAC1006 is suited to applications where a compact footprint is required and space does not permit a standard-profile cylinder. Single-acting actuation means hydraulic pressure extends the ram while a spring or external load returns it, making this cylinder appropriate for clamping fixtures, short-stroke presses, and maintenance tooling in industrial, manufacturing, and MRO environments. The base mounting hole mount supports fixed, stationary installations where controlled directional force is needed.

Key Features

• Single-acting actuation for reliable extend-and-return operation in space-constrained setups
• Black anodized aluminum body for corrosion resistance and reduced weight compared to steel alternatives
• Base mounting hole configuration for secure, fixed installation to fixture plates or work surfaces
• Compact form factor designed for applications where standard-profile cylinders will not fit

Compatibility

Designed as an OEM-style replacement or direct-fit compact hydraulic cylinder for single-acting base-mount applications in industrial and MRO settings.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before mounting or removing the cylinder. Ensure all hydraulic fittings are rated for the system operating pressure and that the mounting surface is flat, clean, and capable of supporting the applied load. Follow applicable facility safety and hydraulic system codes during installation and commissioning.
