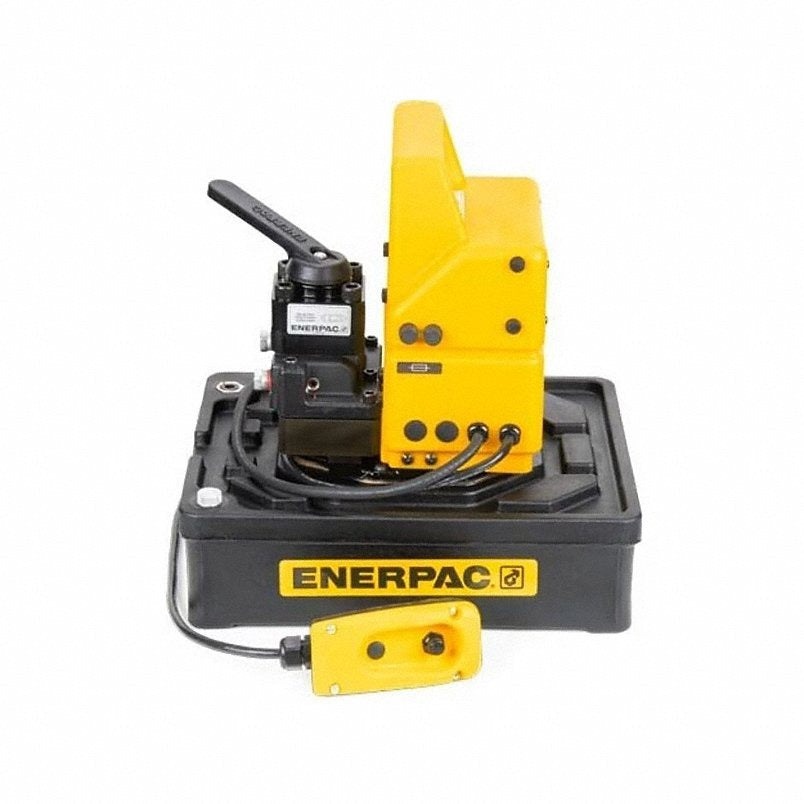

Enerpac puj1401b Hydraulic Pump 10000 Psi Double Acting

Product Description

The ENERPAC puj1401b is a corded electric hydraulic pump designed to power double-acting cylinders and hydraulic tools in industrial and construction applications. Operating at a maximum pressure of 10,000 psi and delivering up to 20 cubic inches per minute at full pressure, this unit runs on a 115V AC supply and draws 9.5 amps through a universal motor rated at 1/2 hp. The polyethylene reservoir holds 1 gallon of hydraulic fluid. Its lightweight construction makes it easier to move between work positions than comparable corded units, and the 10-foot remote control pendant allows the operator to stand clear of the work area during pressurization.

This pump is suited for hydraulic maintenance, fabrication, and tooling operations in commercial, industrial, and job-site settings. It connects to a standard 115V AC outlet, making it practical for shop use or field work where power is available nearby. The 3-position, 4-way control valve supports advance, hold, and retract functions, giving the operator direct control over double-acting cylinder movement without additional valving. Intermittent duty rating makes it appropriate for cycle-based tasks rather than continuous-run applications.

Key Features

• 10,000 psi maximum operating pressure for high-force hydraulic tool and cylinder applications
• 3-position, 4-way control valve with advance, hold, and retract functions
• 10-foot remote control pendant for operator standoff during pressurization
• 1-gallon polyethylene reservoir — lightweight and corrosion resistant
• Runs on 115V AC at 50 Hz or 60 Hz for broad outlet compatibility
• Maximum sound level of 85 dBA at rated load

Compatibility

Designed for use with double-acting hydraulic cylinders and tools requiring a maximum operating pressure of 10,000 psi and a 1/4 inch NPTF media intake connection.

Installation Notes

Installation and connection should be performed by a qualified hydraulic technician or industrial mechanic familiar with high-pressure hydraulic systems. Relieve all system pressure and disconnect the unit from its power source before making or breaking any hydraulic connections. Verify that hoses, fittings, and connected tools are rated for 10,000 psi service before pressurizing the system. Follow applicable OSHA and equipment manufacturer guidelines for hydraulic system safety during setup and operation.

Technical Specifications

• Max. Operating Pressure: 10,000 psi
• Max. Flow Rate: 20 cu in/min
• Displacement at 100 psi: 200 cu in/min
• Displacement at 200 psi: 200 cu in/min
• Displacement at 700 psi: 70 cu in/min
• Displacement at 1000 psi: 30 cu in/min
• Displacement at 5000 psi: 25 cu in/min
• Displacement at 10,000 psi: 20 cu in/min
• Max. Horsepower: 1/2 hp
• Nameplate Voltage: 115V AC
• Current: 9.5 amps
• Frequency: 50 Hz / 60 Hz
• Motor Type: Universal
• Duty Cycle: Intermittent
• Reservoir Capacity: 1 gallon
• Reservoir Material: Polyethylene
• Control Valve Type: 3-Position, 4-Way
• Control Valve Functions: Advance, Hold, Retract
• Control Pendant Length: 10 feet
• Media Intake Connection Size: 1/4 inch NPTF
• Overall Length: 14.5 inches
• Overall Width: 12.2 inches
• Overall Height: 14.7 inches
• Max. Sound Level: 85 dBA
• Cylinder Compatibility: Double Acting
• Country of Origin: USA (subject to change)

Standard Information

• Brand: ENERPAC
• Manufacturer Part Number: puj1401b
