Enerpac PUD1100B 10648 1/2 Hp 115 Volt Elec

Product Description

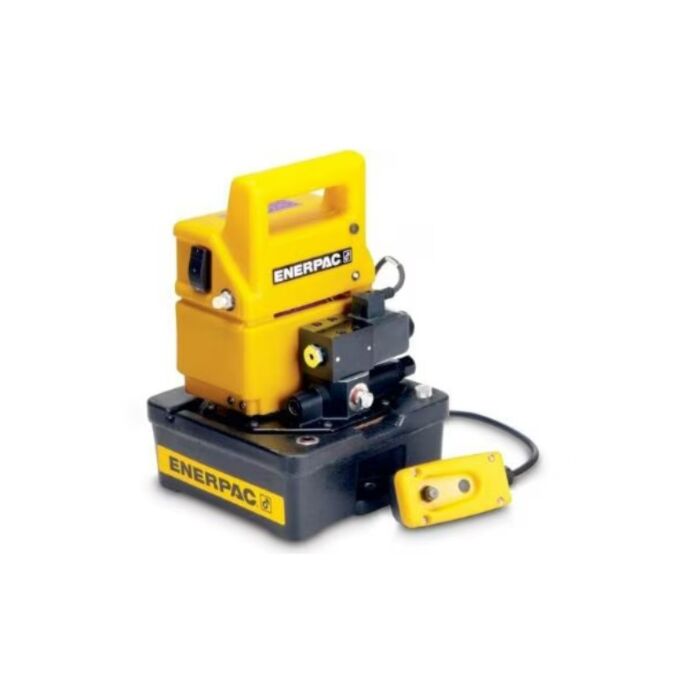

Enerpac PUD1100B is a two-speed economy electric hydraulic pump with a 0.5 hp motor that operates on 115 V. The pump supplies hydraulic power for single-acting cylinders, includes a dump valve and a 10 ft control pendant, and has approximately 1.9 liters usable oil capacity (0.5 gal). It provides variable flow from about 200 to 20 cu in/min depending on pressure and is rated to 10,000 psi.

• Two-speed electric pump with dump valve for advance and retract of single-acting cylinders
• Motor: 0.5 hp, 115 V; variable oil displacement approximately 200 to 20 cu in/min depending on pressure
• Reservoir/usable oil ~0.5 gal (1.9 liters); maximum operating pressure 10,000 psi; 10 ft control pendant

Product Highlights

Two-speed 0.5 hp electric hydraulic pump, 115 V, 10,000 psi max, 0.5 gal reservoir

Product Information

Standard Information

• Brand: ENERPAC
• Manufacturer Part Number: PUD1100B
• Country of Origin: United States

Technical Specifications

• Brand: Enerpac
• MPN: PUD1100B
• Model: PUD1100B
• Type: Two-speed electric hydraulic pump
• Power (Horsepower): 0.5 hp
• Input Voltage: 115 V
• Motor Frequency: 50/60 Hz
• Maximum Operating Pressure: 10,000 psi (700 bar)
• Reservoir Capacity: 0.5 gal (122 cu in)
• Usable Oil Capacity: 1.9 liters
• Output Flow Rate @ 100 psi: 200 cu in/min
• Output Flow Rate @ 5000 psi: 25 cu in/min
• Output Flow Rate @ 10000 psi: 20 cu in/min
• Variable Flow Range: 200 to 20 cu in/min (0-200 to 10,000 psi)
• Pump Operation: Dump (advance/retract)
• Valve Type: Dump valve with pressure relief
• Control Pendant Length: 10 ft
• Cylinder Compatibility: Single-acting cylinders
• Duty Cycle: Intermittent
• Fluid Port: 3/8 in NPT
• Noise Level: 85 dBA
• Weight: Approximately 31.0 lbs
• Overall Height: 14.3 in
• Country of Origin: United States
