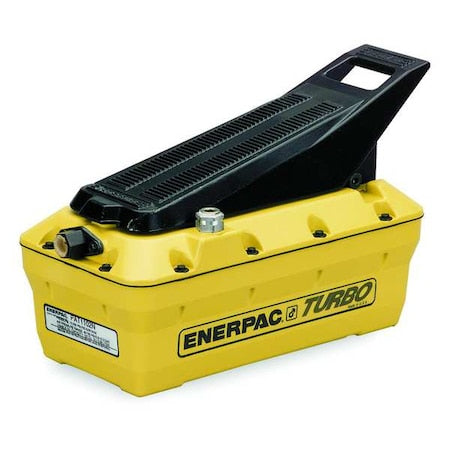

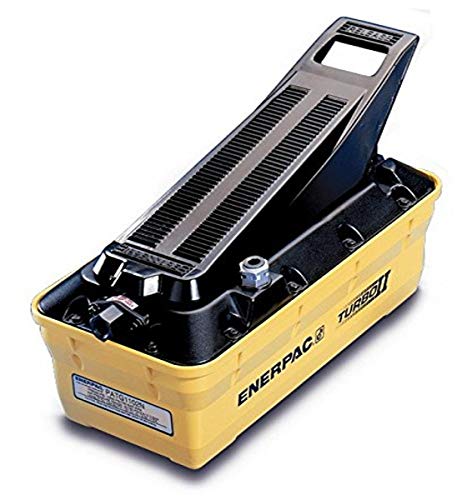

Enerpac PATG1102N Turbo II Air Hydraulic Pump Hand/Foot Operated 3/3 Treadle Valve 127 in3 Usable Oil

Product Description

The Enerpac PATG1102N is a turbo II air hydraulic pump known for its reliability and efficiency in hydraulic applications. It features both hand and foot actuation, allowing for versatile use in various settings.

• Capacity of ten thousand PSI for high-pressure operations.
• Includes a three-position treadle valve for easy control.
• Designed for both air-powered actuation and manual operation.

Product Highlights

This pump is suitable for a range of hydraulic tasks, equipped with a built-in internal pressure relief valve for safe operation.

Product Information

Standard Information

• Brand: Enerpac
• MPN: PATG1102N

Technical Specifications

• Type: Air Powered
• Actuation Type: Foot or Hand
• Operating Air PSI: 40 to 125
• Air Consumption: 12 SCFM
• Fluid Port NPT: 3/8
• Air Inlet NPT: 1/4
• Oil Capacity: 127 cu in
• Reservoir Capacity: 0.54 gal
• Dimensions: Length twelve point four three seven five inches, Width six point five inches, Height eight point three one two five inches
