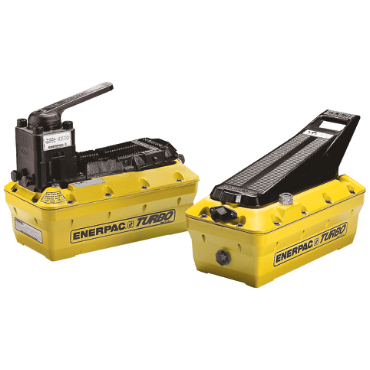

Enerpac PATG-1102N Single-Acting Hydraulic Pump

Product Description

The Enerpac PATG-1102N is a single-acting hydraulic pump designed for industrial applications. With a maximum pressure of ten thousand pounds per square inch, it efficiently powers hydraulic cylinders for various tasks. This pump operates using compressed air, making it suitable for environments where air power is advantageous.

• High efficiency with a cast aluminum air motor
• Pressure relief valve for overload protection
• Quiet operation at seventy-six decibels

Product Highlights

This pump facilitates smooth operation for lifting, bolting, and hydraulic applications, ensuring reliability in demanding conditions.

Product Information

Standard Information

• Brand: Enerpac
• MPN: PATG-1102N

Technical Specifications

• Maximum Operating Pressure: 10000 psi
• Operating Air Pressure Range: 40 to 125 psi
• Air Consumption: 12 scfm
• Flow Rate: 10 in³/min at 10000 psi
• Weight: 18.5 lb
• Height: 8.29 inches
• Length: 13.62 inches
• Port Type: NPTF
• Cylinder Compatibility: Single-Acting
