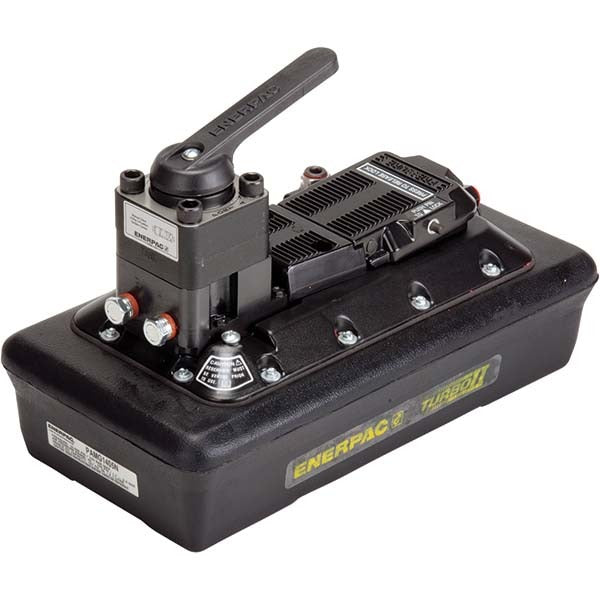

Enerpac PAMG1405N Air-hydraulic Pump 5000 Psi

Product Description

The ENERPAC PAMG1405N is a double-acting air-hydraulic pump rated to 5,000 psi, designed for industrial and trade applications requiring controlled hydraulic force. It operates through a 3-position, 4-way directional control valve that enables Advance, Hold, and Retract cylinder functions. With a 230-cubic-inch oil reservoir and an air consumption rate of 340 liters per minute, this pump delivers consistent hydraulic output for heavy-duty work. Licensed hydraulic technicians and industrial maintenance mechanics are the primary installers and operators of this unit.

The PAMG1405N is suited for use with double-acting hydraulic cylinders in applications such as industrial pressing, structural alignment, heavy equipment maintenance, and controlled force applications on job sites or in shop environments. Its 3-position valve makes it appropriate for tasks that require an intermediate hold position in addition to standard extend and retract operation. The pump is intended for professional use where precise, repeatable hydraulic force is required.

Key Features

• 5,000 psi maximum pressure rating for high-force hydraulic applications
• Double-acting design supports Advance, Hold, and Retract cylinder functions
• 3-position, 4-way directional control valve for precise cylinder operation
• 230-cubic-inch oil reservoir capacity supports extended operation cycles
• Air consumption of 340 liters per minute for efficient pneumatic-to-hydraulic conversion
• Compact footprint at 15.94 inches long, 7.92 inches wide, and 10.50 inches tall

Compatibility

Designed for use with double-acting hydraulic cylinders requiring a 3-position, 4-way valve control circuit at operating pressures up to 5,000 psi.

Installation Notes

Installation and operation should be performed by a qualified hydraulic technician familiar with high-pressure fluid power systems. Depressurize the hydraulic circuit and disconnect the air supply before making or breaking any hydraulic connections. Verify that all hose and fitting pressure ratings meet or exceed the 5,000 psi operating pressure of this pump before placing the system in service. Follow applicable OSHA and industry fluid power safety standards during setup and operation.
