Enerpac PA1150 Air-hydraulic Pump 10000 Psi

Product Description

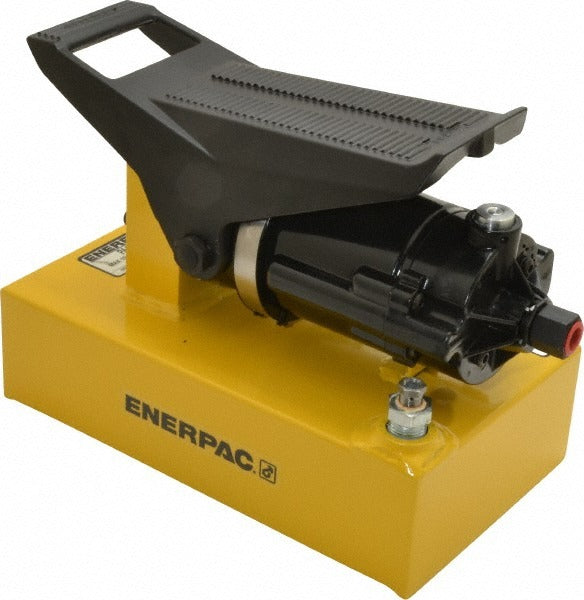

The ENERPAC PA1150 is an air-hydraulic pump rated to 10,000 psi, designed for use with single-acting hydraulic cylinders in industrial and heavy-trade applications. It operates on a compressed-air supply between 60 and 100 psi at 9 CFM, converting shop air pressure into high-force hydraulic output. The manual valve provides direct operator control over three cylinder functions: advance, hold, and retract. With an 80 cubic inch oil reservoir and a compact footprint, the PA1150 suits both fixed shop setups and job-site service work where a reliable, air-driven hydraulic source is required.

The PA1150 is used in applications that require controlled, high-pressure hydraulic force without an electric power source nearby. Typical install scenarios include structural pressing, flange spreading, bolt tensioning, and mechanical maintenance work in industrial facilities, fabrication shops, and field service environments. It is intended for use with single-acting hydraulic cylinders and is well suited to professional trades including millwrights, ironworkers, and heavy-equipment technicians who require repeatable, high-pressure output from a portable pump.

Key Features

• 10,000 psi maximum operating pressure for high-force hydraulic applications
• Air-driven operation requires 60 to 100 psi supply air at 9 CFM
• Manual valve with advance, hold, and retract cylinder control functions
• 80 cubic inch oil reservoir supports extended single-acting cylinder operation
• Compact dimensions support both bench-mounted and portable field use

Compatibility

Designed for use with single-acting hydraulic cylinders requiring a maximum system pressure of 10,000 psi and an air-driven pump source.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with high-pressure hydraulic systems. Before connecting or disconnecting hydraulic lines, relieve all system pressure and ensure the air supply is shut off and depressurized. Verify that all fittings, hoses, and cylinders in the circuit are rated for 10,000 psi service. Consult applicable industry safety standards for high-pressure hydraulic equipment before placing the system into service.
