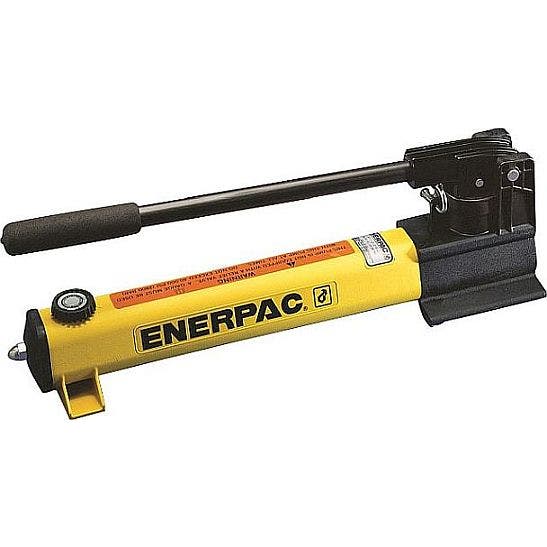

Enerpac P2282 Single-Acting Hydraulic Pump 40,000 psi (60 in3)

Product Description

The Enerpac P2282 is a single-acting, two-stage manual hydraulic pump rated to a maximum operating pressure of 40,000 psi (2800 bar). It provides a fast-fill first stage and a high-pressure second stage with oil displacements of 0.99 in3 (16.22 cm3) and 0.037 in3 (0.61 cm3) respectively, and a 60 in3 (983 cm3) reservoir. The pump features a large release knob and 3/4"-16 cone outlet ports for high-pressure connections.

• Two-stage, two-speed operation with 0.99 in3 (first stage) and 0.037 in3 (second stage) oil displacement per stroke
• Maximum operating pressure 40,000 psi (2800 bar); outlet ports 3/4"-16 cone rated to 40,000 psi
• Reservoir capacity 60 in3 (983 cm3); maximum handle effort 106 lb

Product Highlights

Single-acting, two-stage hand pump; 60 in3 reservoir; 40,000 psi maximum pressure; 3/4"-16 cone outlet

Product Information

Standard Information

• Brand: ENERPAC
• Manufacturer Part Number: P2282
• Country of Origin: United States

Technical Specifications

• Brand: Enerpac
• Manufacturer Part Number (MPN): P2282
• Product Name: Single-Acting Hydraulic Pump
• Product Type: Two-stage, two-speed manual hand pump
• Cylinder Compatibility: Single-Acting
• Number of Stages: 2
• Number of Speeds: 2
• Oil Displacement per Stroke (1st Stage): 0.99 in3 (16.22 cm3)
• Oil Displacement per Stroke (2nd Stage): 0.037 in3 (0.61 cm3)
• Reservoir Capacity: 60 in3 (983 cm3)
• Maximum Operating Pressure: 40,000 psi (2800 bar)
• Maximum Pressure (1st Stage): 200 psi
• Maximum Pressure (2nd Stage): 40,000 psi
• Maximum Handle Effort: 106 lb
• Outlet Port Thread and Rating: 3/4"-16 cone, rated 40,000 psi
• Piston Stroke: 1 in
• Weight: 13.3 lb
• Pump Material: Aluminum (pump body); reservoir: glass-filled nylon; handle: steel
• Includes: 41-366, 3/8 in NPTF adaptor
• Country of Origin: United States
• UPC / EAN: 662005107094
• Dimensions (L x W x H): 22.68 in x 4.74 in x 9 in
