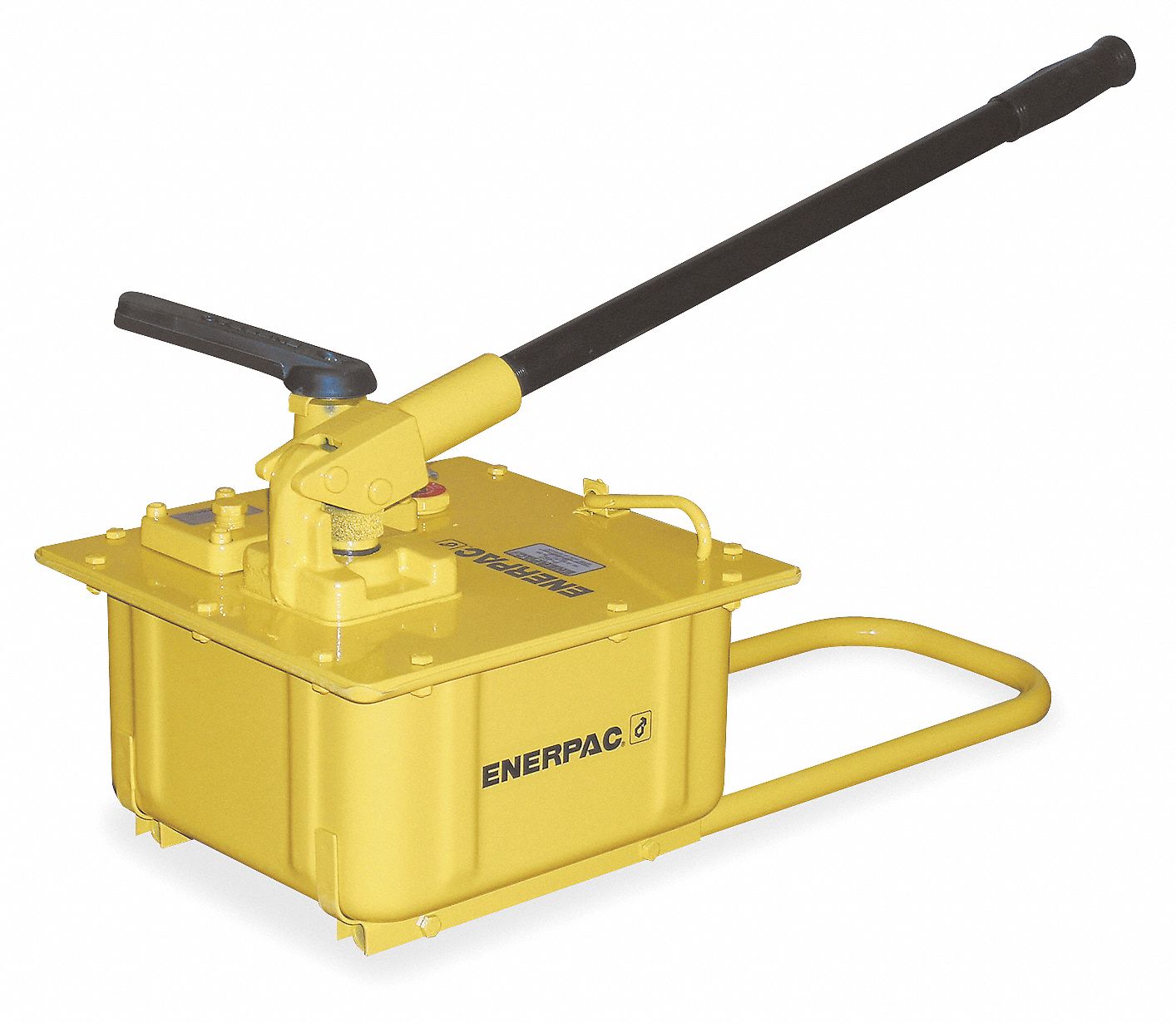

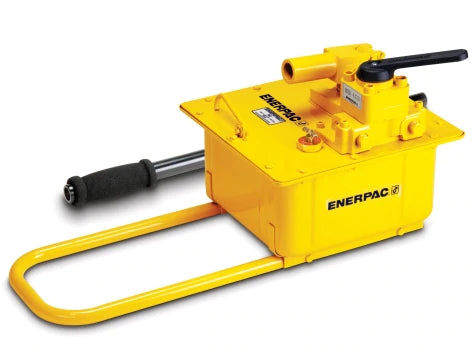

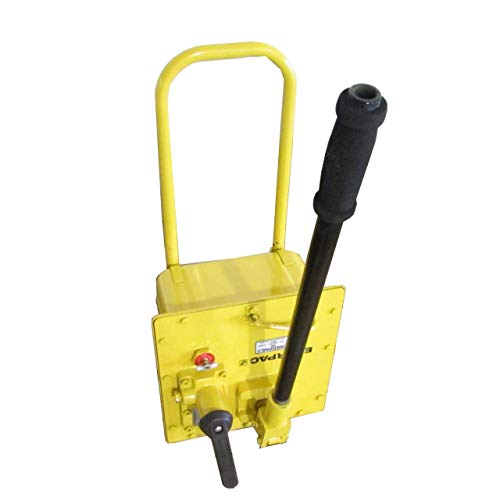

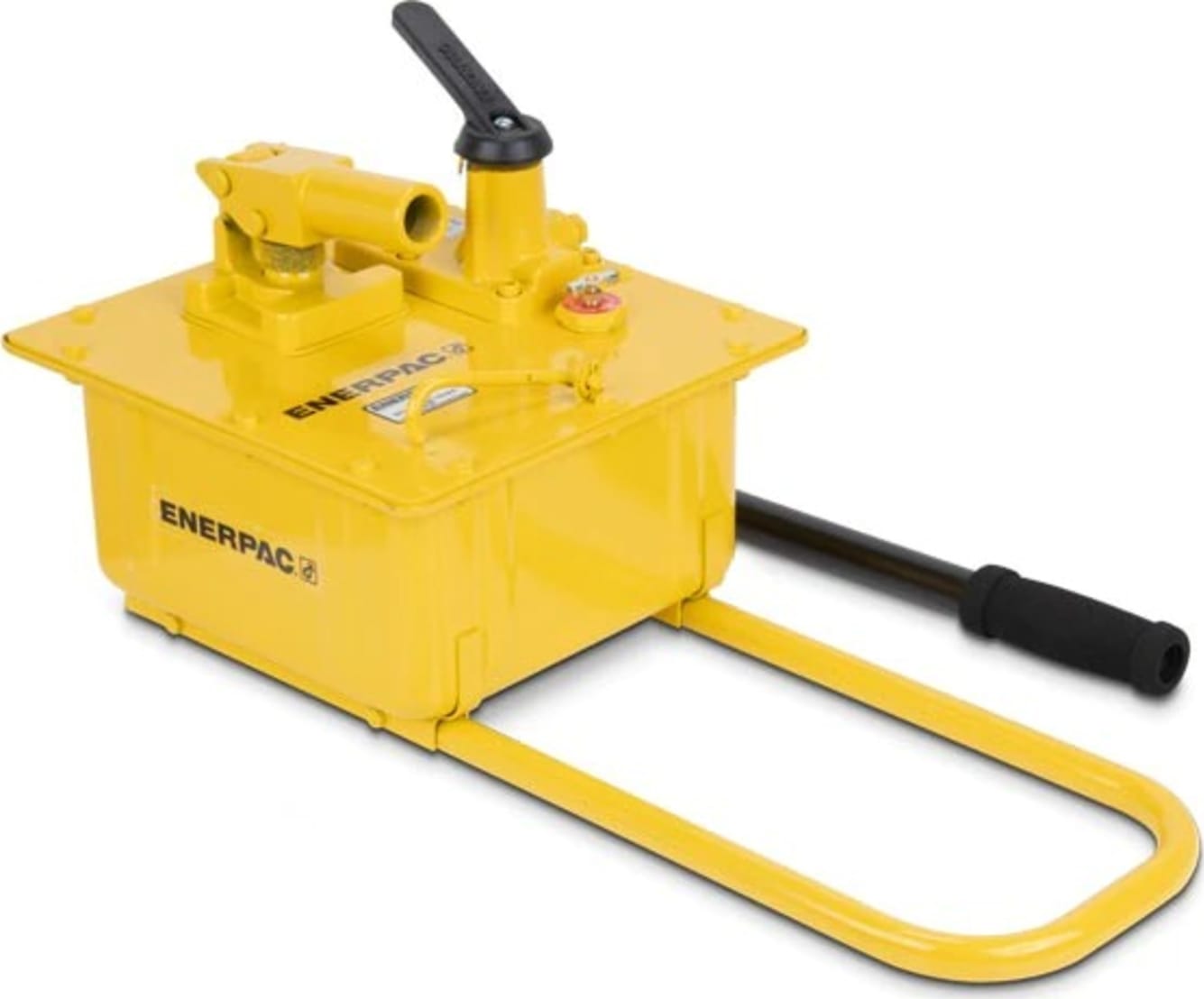

Enerpac P-462 Hydraulic Hand Pump 10000 psi (453 cu in)

Product Description

The Enerpac P-462 is a two-speed hydraulic hand pump rated to 10,000 psi with a 453 cu in steel reservoir. It provides a low-pressure first stage for fast reservoir fill and a high-pressure second stage for work up to 10,000 psi, and connects via a 3/8 in NPT port. The pump is steel-bodied, weighs 61.0 lbs, and includes oil for manual hydraulic operation with single-acting cylinders.

• Two-speed/two-stage operation: first stage 200 psi for fast fill, second stage up to 10,000 psi for work
• 453 cu in usable steel reservoir with vent-free design and integral over-pressurization protection
• 3/8 in NPT connection, steel housing, fiberglass handle, maximum handle effort 110 lb

Product Highlights

Two-speed hydraulic hand pump; 453 cu in steel reservoir; 10,000 psi maximum pressure.

Product Information

Standard Information

• Brand: ENERPAC
• Manufacturer Part Number: P-462
• Country of Origin: United States

Technical Specifications

• Brand: Enerpac
• Manufacturer Part Number: P-462
• Model: P462
• Product Type: Hydraulic hand pump
• Pump Type: Two-speed (two-stage), single-acting
• Maximum Pressure: 10000 psi
• First Stage Max Pressure: 200 psi
• Second Stage Max Pressure: 10000 psi
• Reservoir Capacity: 453 cu in
• Usable Oil Capacity: 453 cu in
• Port Size: 3/8 in NPT
• Material: Steel (reservoir and housing)
• Handle Material: Fiberglass
• Max Handle Effort: 110 lb
• Displacement per Stroke 1st Stage: 7.69 cu in
• Displacement per Stroke 2nd Stage: 0.29 cu in
• Overall Length: 29-15/64 in
• Overall Width: 12-1/8 in
• Overall Height: 10-5/8 in
• Weight: 61.0 lbs
• Includes: Oil
• Country of Origin: USA
