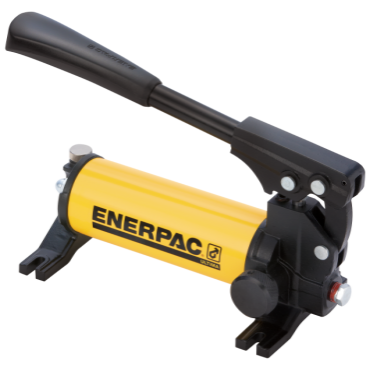

Enerpac P-18 Single-Acting Hydraulic Pump 2850 psi

Product Description

The Enerpac P-18 is a single-acting hydraulic pump designed for effective hydraulic applications. With a maximum operating pressure of 2850 psi, it is suitable for various tasks in construction and industrial settings.

• External load release valve to enhance safety.
• Internal pressure relief valve provides overload protection.
• Can be operated in both horizontal and vertical positions.

Product Highlights

This pump is ideal for those who need reliable hydraulic power.

Product Information

Standard Information

• Brand: Enerpac
• MPN: P-18

Technical Specifications

• Stages: 1
• Usable Oil Capacity: 22 in³, 360 cm³
• Flow [Max]: 0.16 in³/Stroke, 2.46 cm³/Stroke
• Reservoir Capacity: 22 in³, 360 cm³
• Oil Capacity: 18 in³
• Pressure Rating 1st Stage: 2850 psi, 200 bar
• Operating Pressure [Max]: 2850 psi, 200 bar
• Volume Per Stroke: 0.160 in³
• Cylinder Compatibility: Single-Acting
• Height: 6.390 in
• Valve Operation: Manual
• Length: 15.170 in
• Oil Displacement Per Stroke (1st Stage): 0.15 in³, 2.46 cm³
• Weight: 13.08 LB
• EAN or UPC: 662005107001
