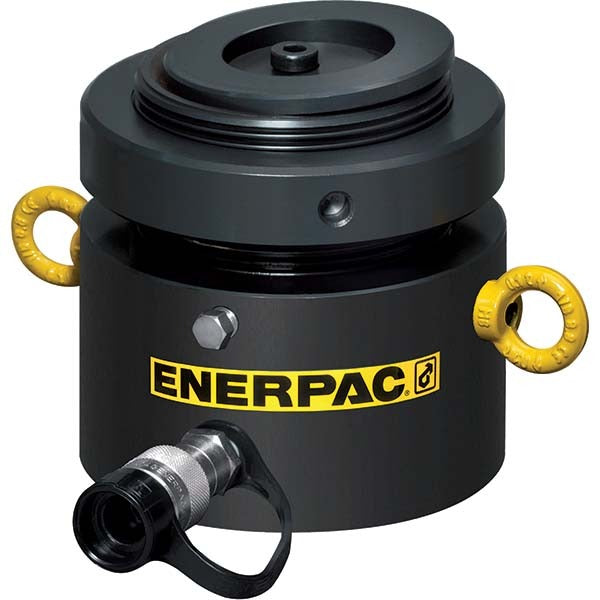

Enerpac LPL1002 Compact Hydraulic Cylinder Single Acting

Product Description

The ENERPAC LPL1002 is a single-acting compact hydraulic cylinder designed for industrial and mechanical applications where space is limited and precise controlled force is required. Built with a steel body, this cylinder delivers reliable hydraulic actuation in a low-profile form factor. Single-acting operation means hydraulic pressure extends the ram while an internal spring or external load handles retraction. At 54 pounds, it is a substantial unit suited for stationary press, clamping, lifting, and positioning tasks. Licensed hydraulic technicians and millwrights are the primary installers for this type of equipment.

The LPL1002 is configured with a base mounting hole mount, allowing it to be bolted directly to a fixture, frame, or work surface for stable, repeatable operation. This mounting style is common in production tooling, maintenance presses, and custom fabrication setups where the cylinder must remain fixed during the work cycle. It is appropriate for both light industrial and heavy-duty shop applications. The single-acting design keeps the hydraulic circuit simple, reducing the number of fittings and valve components required in the system.

Key Features

• Single-acting actuation for simplified hydraulic circuit design
• Steel body construction for durability in demanding shop and industrial environments
• Base mounting hole configuration enables secure, stationary fixture mounting
• Compact form factor fits space-constrained tooling and press applications
• 54-pound unit weight reflects robust construction suitable for high-force tasks

Compatibility

Designed as an OEM-style replacement or direct-install compact hydraulic cylinder for single-acting base-mount hydraulic systems in industrial and tooling applications.

Installation Notes

Installation should be performed by a qualified hydraulic technician or millwright familiar with hydraulic system safety procedures. Depressurize and bleed the hydraulic system completely before removing or installing any cylinder. Ensure all hydraulic fittings are rated for the system operating pressure and are torqued per the fitting manufacturer specifications. Follow applicable OSHA and facility safety guidelines when working under hydraulic loads.
