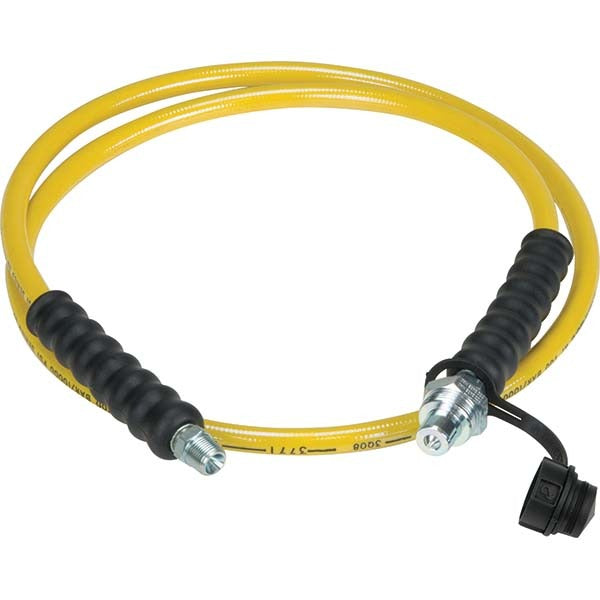

Enerpac HC7220 Hydraulic Pump Hose 10000 Psi 1/4 in 20 Ft

Product Description

The ENERPAC HC7220 is a high-pressure hydraulic pump hose designed for use with hydraulic tooling systems operating at pressures up to 10,000 psi. The hose features a steel wire braid reinforcement over a thermoplastic inner core, giving it the structural integrity required for demanding industrial hydraulic circuits. It measures 1/4 inch inside diameter and 20 feet in overall length, making it a practical reach hose for most portable pump and cylinder setups. One end terminates in a 3/8 NPTF male fitting, while the opposite end carries a CH-604 coupler connection. The yellow outer jacket aids in visibility on the job site. Hydraulic equipment technicians and industrial maintenance professionals are the typical installers of this hose.

The HC7220 belongs to the H700 series and is suited for use with single-acting and double-acting hydraulic cylinders, hydraulic torque wrenches, pullers, and similar hydraulic tooling powered by compatible Enerpac hydraulic pumps. The 20-foot length provides adequate working distance between pump and tool in most maintenance and construction scenarios. This hose is intended for professional hydraulic circuit applications where a rated 10,000 psi working pressure is required. It is not intended for pneumatic, steam, or water service.

Key Features

• 10,000 psi maximum working pressure rated for high-pressure hydraulic circuits
• Steel wire braid over thermoplastic construction provides reinforcement and flexibility
• 1/4 inch inside diameter supports standard hydraulic flow requirements
• 20-foot overall length offers extended reach between pump and cylinder
• 3/8 NPTF thread on one end with CH-604 coupler on the opposite end
• Yellow outer jacket for job site visibility and H700 series identification

Compatibility

Designed as an H700 series replacement hose compatible with Enerpac hydraulic pump and cylinder systems that use 3/8 NPTF connections and CH-604 coupler fittings operating at up to 10,000 psi.

Installation Notes

Hydraulic hose installation should be performed by a qualified hydraulic equipment technician. Depressurize and lock out the hydraulic system completely before disconnecting or installing any hose. Inspect fittings and threads for damage before making connections, and do not overtighten NPTF fittings beyond hand-tight plus the turns specified by the fitting manufacturer. Never use a hose that shows signs of kinking, abrasion, or fitting damage at any pressure level.
