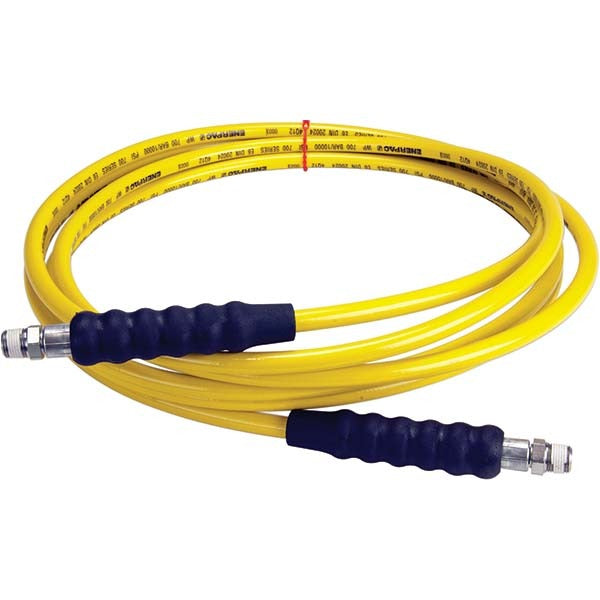

Enerpac H7220 Hydraulic Pump Hose 10000 Psi 20 Ft 1/4 in

Product Description

The ENERPAC H7220 is a high-pressure hydraulic pump hose rated to 10,000 psi, designed for use with hydraulic pumps and cylinders in industrial and mechanical service applications. The hose features a rubber-coated body reinforced with steel wire braid, providing the flexibility and burst resistance required in demanding hydraulic circuits. At 20 feet in overall length with a 1/4-inch inside diameter, it delivers controlled fluid flow between pump and tool without pressure drop across typical service distances. End fittings are 3/8 NPT on one end and 3/8 NPTF male on the opposite end. Hydraulic technicians and industrial maintenance professionals are the primary installers of this hose assembly.

This hose is suited for high-pressure hydraulic systems used in maintenance, construction, and fabrication environments. It is commonly paired with hydraulic hand pumps and single- or double-acting cylinders in applications such as pressing, lifting, pulling, and bending. The yellow outer jacket aids in visual identification on crowded work surfaces or in multi-hose setups. The 20-foot length allows positioning flexibility between a pump station and a remote work point without requiring additional couplers or extensions.

Key Features

• 10,000 psi pressure rating for use in high-pressure hydraulic circuits
• Rubber-coated outer jacket with steel wire braid reinforcement for durability and flexibility
• 20-foot overall length with 1/4-inch inside diameter for controlled hydraulic flow
• 3/8 NPT inlet and 3/8 NPTF male outlet end fittings for secure leak-resistant connections
• Yellow outer jacket for easy identification in multi-hose work environments

Compatibility

Designed as an OEM-style replacement hose for hydraulic pump and cylinder systems using 3/8 NPT and 3/8 NPTF male threaded connections at 10,000 psi working pressure.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial mechanic familiar with high-pressure fluid systems. Depressurize and isolate the hydraulic circuit fully before disconnecting or installing any hose assembly. Inspect both end fittings and mating ports for thread damage or contamination before making connections. Do not exceed the rated working pressure of 10,000 psi, and route the hose away from sharp edges, heat sources, and pinch points to prevent premature wear or failure.
