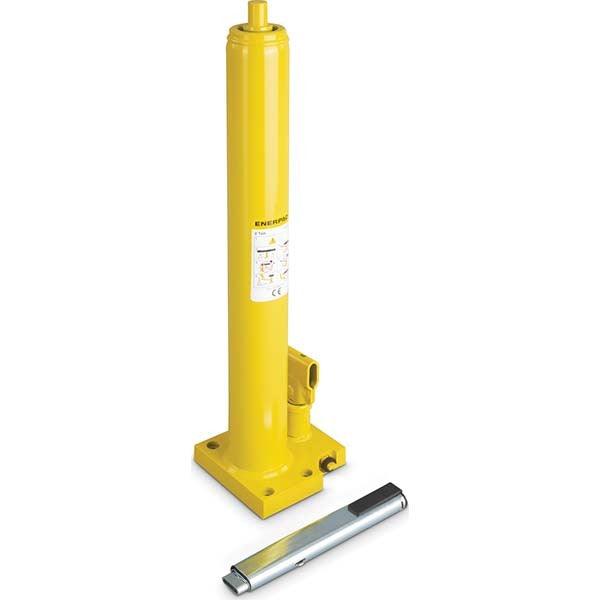

Enerpac GBJ002LA Hydraulic Bottle Jack 2 Ton

Product Description

The ENERPAC GBJ002LA is a manual hydraulic bottle jack rated for 2-ton load capacity, designed for lifting and supporting heavy loads in industrial, mechanical, and construction applications. Built from steel, this jack combines hydraulic, screw, and ratchet actuation mechanisms to deliver controlled lift across a wide height range — from 22.4375 inches minimum to 40.5 inches maximum. The 18.11-inch piston stroke makes it well suited for applications requiring extended reach. Installation and operation are typically performed by millwrights, ironworkers, mechanics, and maintenance technicians working with heavy equipment.

The GBJ002LA is used in settings where a stable, manually operated bottle jack is needed to lift or position loads up to 2 tons. Its wide base footprint — 4.5625 inches in base diameter and approximately 3 inches base width — provides stable support on flat work surfaces. Typical applications include machinery positioning, equipment maintenance, vehicle undercarriage work, and structural support tasks in both shop and field environments.

Key Features

• 2-ton load capacity with combined hydraulic, screw, and ratchet lift mechanisms
• Wide height range: 22.4375 inches minimum to 40.5 inches maximum
• 18.11-inch piston stroke for extended lift reach
• Steel construction for durability in demanding work environments
• 4.5625-inch base diameter for stable footing on flat surfaces
• ANSI, PALD, and CE certified for safety compliance

Compatibility

Designed as an OEM-style replacement or direct-use manual hydraulic bottle jack for industrial and mechanical lifting applications requiring a 2-ton capacity unit within the 22.4375-inch to 40.5-inch height range.

Installation Notes

Operation and positioning should be performed by qualified mechanical or maintenance personnel familiar with hydraulic lifting equipment. Always place the jack on a firm, level surface and ensure the load is centered on the saddle before applying pressure. Inspect the jack for leaks or damage before each use, and never exceed the rated 2-ton load capacity. Follow all applicable ANSI and workplace safety guidelines when lifting or supporting loads.
