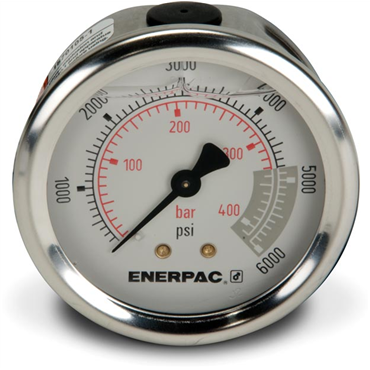

Enerpac G2534R Centre Rear Mount Glycerine Filled Gauge

Product Description

The Enerpac G2534R is a glycerine-filled gauge designed for accurate pressure measurement. It features dual scale readings in psi and bar for versatile applications. This instrument is suitable for use in various hydraulic systems. The gauge includes a center rear mount for easy installation and is filled with glycerine to protect internal components from vibrations.

• 63 mm face diameter
• 1/4 inch NPTF thread connection
• 1.5 % accuracy

Product Highlights

This gauge is built to endure harsh conditions while providing reliable performance. It includes a safety blow-out disk and a pressure equalizing membrane for added safety over time.

Product Information

Standard Information

• Brand: Enerpac
• MPN: G2534R

Technical Specifications

• Major Graduations: 1,000 psi, 100 bar
• Mount: Center Rear
• Thread: 1/4 inch NPTF
• Operating Pressure [Max]: 6000 psi, 400 bar
• Style: Glycerine Filled
• Minor Graduations: 100 psi, 10 bar
• Face Diameter: 63 mm
• Weight: 0.7 LB
• EAN or UPC: 662005223060
