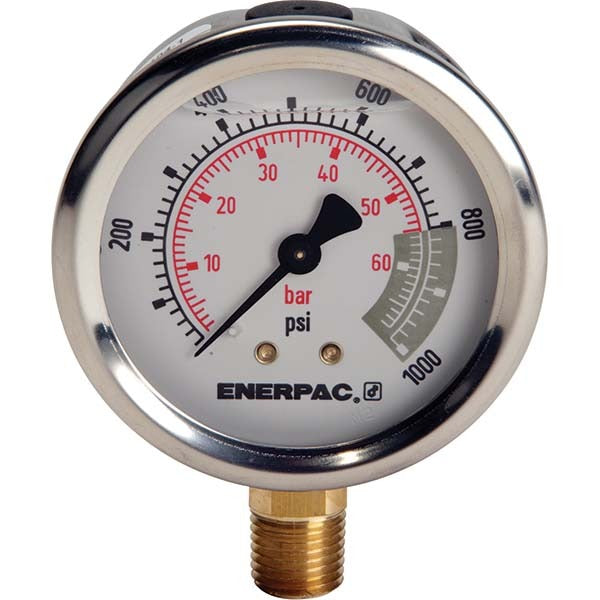

Enerpac G2514L Hydraulic Pressure Gauge 1000 Psi

Product Description

The ENERPAC G2514L is a glycerine-filled hydraulic pressure gauge rated to 1000 psi (70 bar) with a 2.5-inch face diameter and a bottom-mount 1/4 NPTF connection. Glycerine fill dampens needle vibration and protects internal components during high-cycle or pulsating hydraulic system operation. The dual-scale display reads in both psi and bar, making it suitable for cross-standard field applications. Gauge accuracy is rated at plus or minus 1.5 percent. This gauge is a standard replacement component installed by hydraulic system technicians and maintenance professionals in industrial and shop environments.

The G2514L is used in hydraulic power unit assemblies, press systems, cylinder test benches, and other stationary or portable hydraulic circuits where continuous pressure monitoring is required. The bottom-mount NPTF connection allows direct manifold or port-block installation. The 2.5-inch face size is well suited for panel-mount or hand-pump gauge port applications where a compact, readable display is needed without requiring a large mounting footprint.

Key Features

• Glycerine fill reduces needle flutter in high-vibration or pulsating hydraulic circuits
• 1000 psi (70 bar) maximum working pressure rating
• Dual-scale display reads psi and bar simultaneously
• Bottom-mount 1/4 NPTF connection for direct port or manifold installation
• 2.5-inch face diameter for compact panel or port-block mounting
• Plus or minus 1.5 percent gauge accuracy

Compatibility

Designed as an OEM-style replacement pressure gauge for hydraulic power units, hand pumps, and cylinder test circuits requiring a 1/4 NPTF bottom-mount gauge port rated to 1000 psi.

Installation Notes

Installation is performed by hydraulic system technicians or qualified maintenance personnel. Relieve all system pressure and de-energize the hydraulic power unit before removing or installing any gauge. Use appropriate thread sealant rated for hydraulic fluid compatibility on the NPTF threads. Do not exceed the 1000 psi maximum working pressure rating during system operation or testing.
