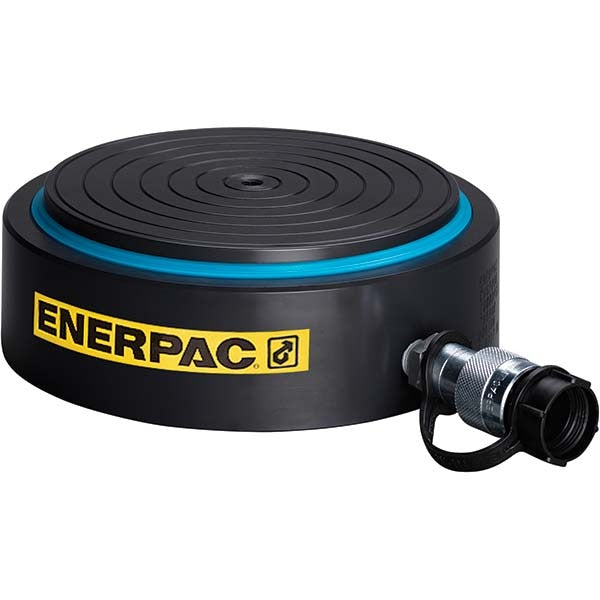

Enerpac CUSP10 Compact Hydraulic Cylinder Steel

Product Description

The ENERPAC CUSP10 is a compact, single-acting hydraulic cylinder designed for applications where space is limited and reliable force output is required. Built with a steel body, this cylinder delivers consistent hydraulic actuation in a reduced-envelope package. Single-acting operation means hydraulic pressure extends the ram, while an internal spring or gravity returns it to the retracted position. It is suited for use by hydraulic technicians, millwrights, and maintenance professionals working in industrial, manufacturing, and heavy equipment service environments.

The CUSP10 is appropriate for both horizontal and vertical mounting configurations, giving technicians flexibility in how it is positioned within a fixture, press, or holding assembly. Its compact form factor makes it practical in tight spaces where a standard-profile cylinder would not fit. This cylinder is typically used in light-duty industrial pressing, clamping, lifting, and alignment tasks where a controlled, repeatable force application is needed.

Key Features

• Single-acting actuation for straightforward extend-and-return operation
• Steel body construction for durability in industrial service conditions
• Supports both horizontal and vertical mounting orientations
• Compact profile designed for restricted-clearance installations
• Lightweight at 2.6 pounds, reducing handling effort during setup

Compatibility

Designed as an OEM-style replacement or supplemental hydraulic cylinder for compact single-acting hydraulic circuit applications in industrial equipment.

Installation Notes

Installation should be performed by a qualified hydraulic technician or millwright. Depressurize and isolate the hydraulic circuit fully before connecting or disconnecting the cylinder. Ensure all hydraulic fittings are rated for the operating pressure of the system. Follow applicable industry standards and equipment manufacturer guidelines for mounting torque and line sizing.
