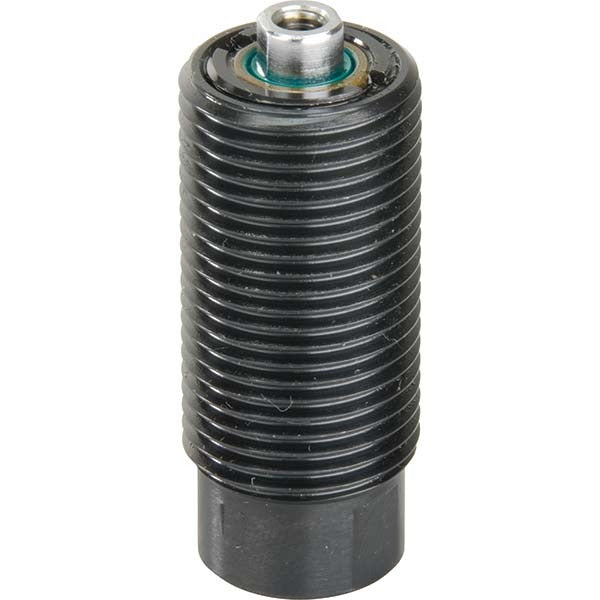

Enerpac CST471 Compact Hydraulic Cylinder Single Acting

Product Description

The ENERPAC CST471 is a single-acting compact hydraulic cylinder built for applications where space is limited and precise linear force is required. Constructed from steel, this cylinder is suited for industrial maintenance, shop pressing, and light-duty hydraulic tooling setups. Its compact body measures 1.87 inches in height and 0.62 inches in both width and length, making it well-suited for tight quarters. The 7/16-20 port size accommodates standard hydraulic fittings used across common hand-pump and power-unit systems. At 0.4 pounds, it is lightweight enough to position and handle without additional rigging. Installation is typically performed by industrial maintenance technicians and hydraulic service professionals.

This cylinder is designed for horizontal or vertical mounting configurations, giving the installer flexibility depending on the application layout. It fits well in benchtop hydraulic setups, fixture-mounted pressing applications, and field service scenarios where a small-footprint cylinder is needed. The single-acting design relies on spring return or external load return, which is standard practice for many low-stroke tooling and clamping applications. No specific OEM model compatibility is stated in the product data.

Key Features

• Single-acting actuation for straightforward hydraulic circuit integration
• Steel body construction for durability in industrial environments
• Supports both horizontal and vertical mounting orientations
• 7/16-20 port size compatible with standard hydraulic fittings
• Compact footprint: 1.87 inches height, 0.62 inches width and length
• Lightweight at 0.4 pounds for easy positioning and handling

Compatibility

Designed as an OEM-style replacement or supplemental compact hydraulic cylinder for single-acting hydraulic circuits using standard 7/16-20 ported connections in horizontal or vertical mount applications.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial maintenance professional. Relieve all hydraulic pressure and disconnect the cylinder from the hydraulic circuit before servicing or replacing any components. Ensure the mounting surface is clean, level, and capable of supporting the load generated by the cylinder under full pressure. Verify that all hydraulic fittings are rated for the operating pressure of the system before connecting.
