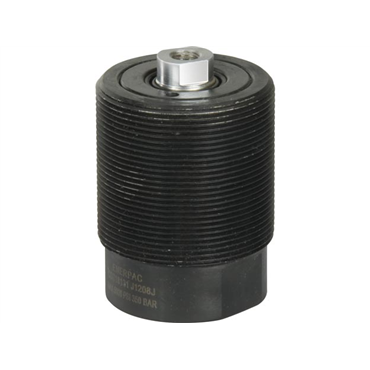

Enerpac CDT18131 Double-Acting Hydraulic Cylinder

Product Description

The Enerpac CDT18131 is a double-acting hydraulic cylinder designed for high-cycle applications. This cylinder has a stroke of zero point five one inches and is built for high reliability in various tasks. It offers a minimum diameter while maximizing clamping forces for efficient operation.

• Minimum cylinder diameter optimized for clamping
• Threaded body for easy positioning
• Maintenance-free performance

Product Highlights

The CDT18131 features a steel body construction and internal wipers to enhance durability and extend service life.

Product Information

Standard Information

• Brand: Enerpac
• MPN: CDT18131
• Part Number: 106467089

Technical Specifications

• Operating Pressure [Max]: 5000 psi
• Cylinder Capacity Retract [MAX]: 2330 lbs
• Stroke Range: 0 to 0.99 in
• Oil Capacity - Retract: 0.24 in3
• Series: CDT
• Action: Double-Acting
• Body Material: Steel
• Plunger Type: Solid
• Stroke: 0.51 in
• Cylinder Type: Workholding Threaded
• Return Type: Double-Acting, Hydraulic Return
• Cylinder Capacity Advance [MAX]: 3900 lbs
• Material: Steel
• Oil Capacity - Advance: 0.4 in3
• Cylinder Effective Area - Advance: 0.77 in2
• Cylinder Effective Area - Retract: 0.46 in2
• Weight: 3.6 lb
• EAN or UPC: 662005133314
