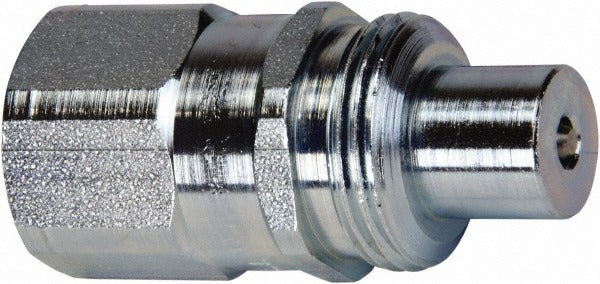

Enerpac AH630 Hydraulic Coupler 10000 Psi 1/4 in Nptf

Product Description

The ENERPAC AH630 is a regular-flow male coupler designed for high-pressure hydraulic hose connections in professional hydraulic tool systems. Rated to 10,000 psi maximum working pressure, this straight-body steel coupler uses a 1/4-inch NPTF threaded connection to deliver a leak-resistant, pressure-tight seal. At 2.61 inches in overall length and weighing 0.15 pounds, it is compact and built for use in tight service environments. It is part of the ENERPAC AH series and is installed by hydraulic equipment technicians and industrial service professionals working on portable hydraulic systems.

The AH630 is intended for use with hand pump hydraulic systems operating at pressures up to 10,000 psi. Its 1/4-inch hose size and regular-flow design support a maximum flow rate of 7.60 GPM, making it suitable for standard single-acting and general-purpose hydraulic tool circuits. The straight configuration and NPTF thread type suit both new installations and field replacement work on portable hydraulic power units and tool sets.

Key Features

• 10,000 psi maximum working pressure rating for high-pressure hydraulic service
• 1/4-inch NPTF threaded connection for a leak-resistant, pressure-tight fit
• Steel construction for durability in demanding hydraulic environments
• Maximum flow rate of 7.60 GPM supports regular-flow hydraulic circuits
• Straight body profile at 2.61 inches overall length for compact installations
• Part of the ENERPAC AH series, designed for use with hand pump systems

Compatibility

Designed for use with ENERPAC hand pump hydraulic systems. Compatible with 1/4-inch hydraulic hose assemblies using NPTF threaded fittings rated to 10,000 psi within the AH series.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize the hydraulic system completely before disconnecting or installing any coupler. NPTF threads are self-sealing by design, but inspect threads for damage before assembly and verify torque is applied per the equipment manufacturer's guidance. Do not exceed the 10,000 psi maximum working pressure rating of this fitting.
