Enerco F106404XL 20' ERXL Tube Set

Product Description

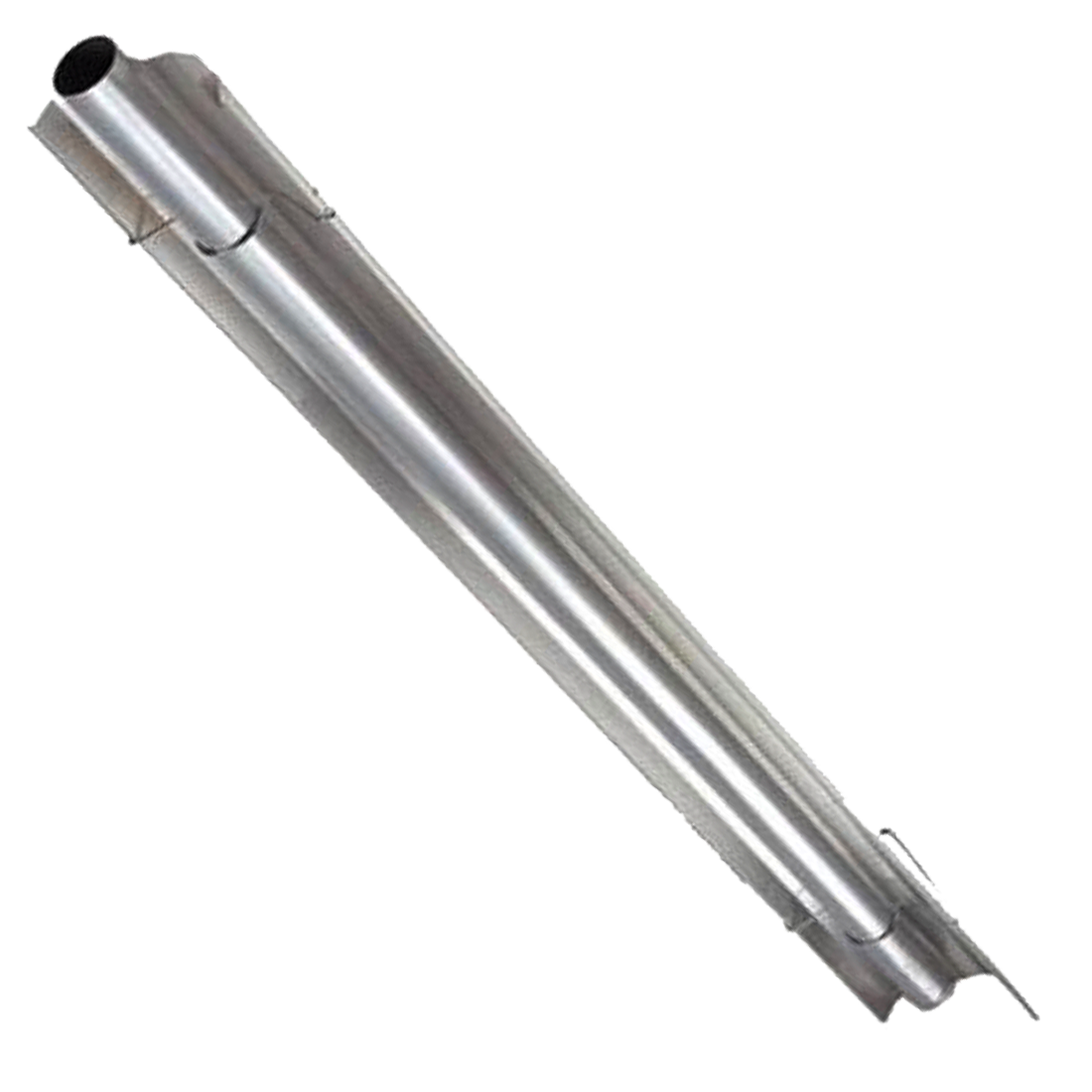

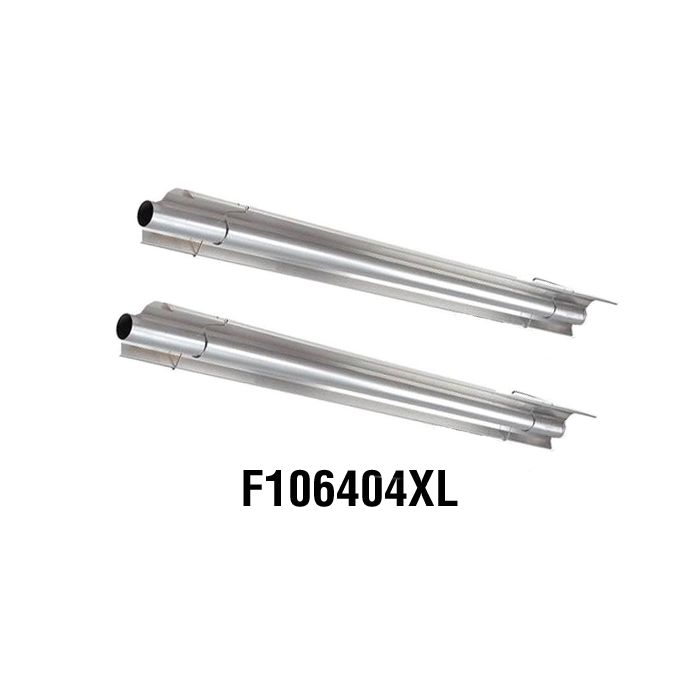

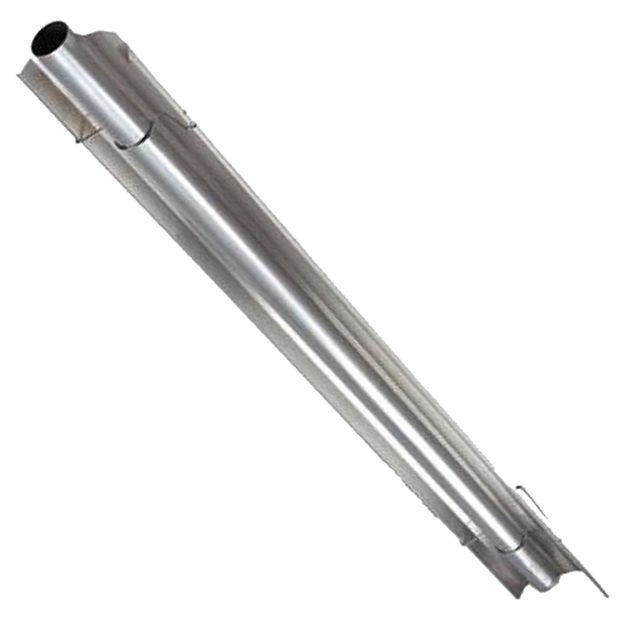

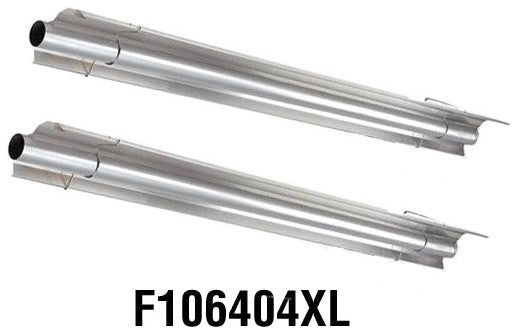

The Enerco F106404XL is a tube set measuring twenty feet. It is made for use with ERXL series low-intensity radiant tube heaters. This set works with Enerco Heatstar box burners. The set provides radiant heat to items at floor level. Components included in this set are tubes, reflectors, hangers, couplers, and a vent adapter.

• Designed for ERXL series heaters
• Facilitates low-intensity radiant heat distribution
• Includes tubes, reflectors, hangers, couplers, and vent adapter

Product Highlights

Product Information

Standard Information

• Brand: Enerco
• MPN: F106404XL

Technical Specifications

• Tube Length: 20 feet
• Tube Diameter: 4 inches
• Fuel Type: Natural Gas or Propane
• Electrical Rating: 120V
• Ignition: Hot Surface
• Gas Inlet Connection: 1/2 inch ID FPT
• Mounting Height Range: 10 feet - 15 feet
• Venting: Exhaust 25 feet Max
• Clearance to Combustibles: Horizontal: Above 6 inches; Below 55 inches; Sides 36 inches
• Thermostat: Optional
• Certification: CSA
• Weight: 110 lbs
• Electrical Connection: Pigtail Leads in Junction Box
