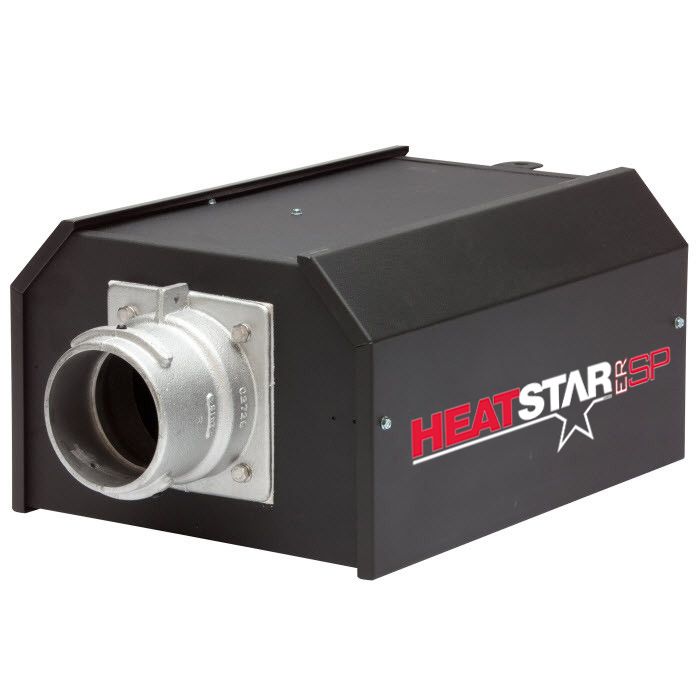

ENERCO F102658SP Single Stage Burner Box Control

Product Description

The ENERCO F102658SP is a single-stage burner box control unit suitable for low-intensity radiant tube heaters. It operates using natural gas or propane, providing flexibility in fuel choices.

• Designed for low-intensity radiant tube heaters.
• Compatible with natural gas and propane.
• Built with a sealed burner control box.

Product Highlights

This burner box control enhances safety and efficiency for heating applications.

Product Information

Standard Information

• Brand: ENERCO
• Model: F102658SP

Technical Specifications

• Input BTU: 150,000
• Electrical Rating: 120V
• Electrical Connection: Pigtail Leads in Junction Box
• Gas Inlet Connection: 1/2in ID FPT
• Mounting Height Range: 15-ft - 25-ft
• Clearance to Combustibles: Horizontal: Above 6in; Below 87in; Sides 36in
• Venting: Length Min/Max: 25-ft
• Venting: Exhaust: 25ft
• Venting: Air Intake: 25-ft
• Thermostat Optional: Optional
• Fuel Type: Natural Gas or Propane
• Warranty: 10 Year Limited
• Certification: CSA
