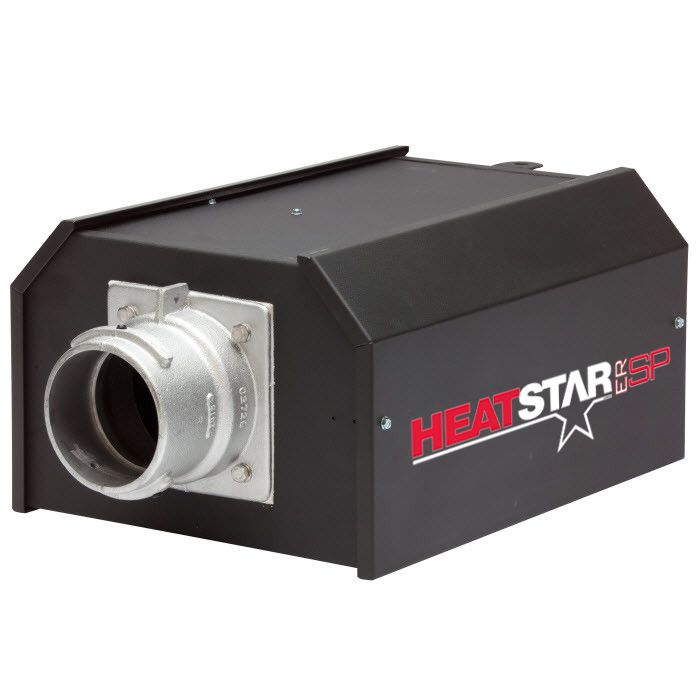

Enerco F102656SP Single Stage Burner Box Control

Product Description

The Enerco F102656SP is a single-stage burner box control suitable for low-intensity radiant tube heaters. This unit supports both natural gas and propane fuel types. It provides spark ignition and is designed to direct radiant heat towards floor-level objects.

• Compatible with natural gas and propane.
• Includes a sealed burner control box.
• Supports both straight and U-tube installations.

Product Highlights

This burner control is effective for heating large spaces with efficiency. It can be vented vertically or horizontally for flexible installation options.

Product Information

Standard Information

• Fuel Type: Natural Gas or Propane
• Venting Options: Category I Vertical, Category III Horizontal

Technical Specifications

• Input BTU per Hour: 125,000
• Electrical Rating: 120V
• Electrical Connection: Pigtail Leads in Junction Box
• Gas Inlet Connection: Half-inch ID FPT
• Mounting Height Range: 14 feet to 19 feet
• Clearance to Combustibles: Horizontal - Above: 6 inches
• Clearance to Combustibles: Horizontal - Below: 87 inches
• Clearance to Combustibles: Horizontal - Sides: 36 inches
• Venting Length Minimum/Maximum: 25 feet
• Weight: 36 pounds
• Warranty: 10 Year Limited
• Certification: CSA
• Model: ERSP125-N / ERSP125-LP
• Tubing: 16-Gauge Aluminized
• Control Box: Sealed Burner Control Box
• Reflector: Full Cover Polished Aluminum Reflector
