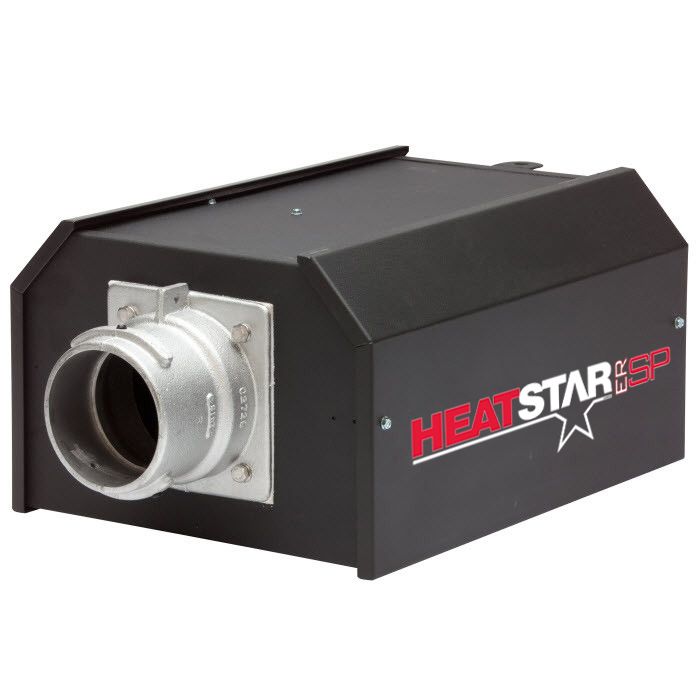

ENERCO F102654SP Single Stage Burner Box Control

Product Description

The ENERCO F102654SP is a reliable single-stage burner box control suitable for low-intensity radiant tube heaters. This unit offers direct radiant heat to floor objects, effectively warming the surrounding air. It is equipped with spark ignition and can use either natural gas or propane.

• Spark ignition system for easy operation.
• Compatible with natural gas and propane.
• Specifically designed for low-intensity radiant tube heaters.

Product Highlights

This burner box control provides efficient heating and is ideal for various applications, ensuring optimal performance with proper installation.

Product Information

Standard Information

• Brand: ENERCO
• MPN: F102654SP

Technical Specifications

• Input BTU: 100,000
• Electrical Rating: 120V
• Electrical Connection: Pigtail Leads in Junction Box
• Gas Inlet Connection: 1/2in ID FPT
• Mounting Height Range: 12-ft - 15-ft
• Clearance to Combustibles: Horizontal - Above: 6in
• Clearance to Combustibles: Horizontal - Below: 74in
• Clearance to Combustibles: Horizontal - Sides: 36in
• Venting: Length Min/Max: 25-ft
• Venting: Exhaust: 25-ft
• Venting: Air Intake: 25-ft
• Fuel Type: Natural Gas or Propane
• Warranty: 10 Year Limited
• Certification: CSA
