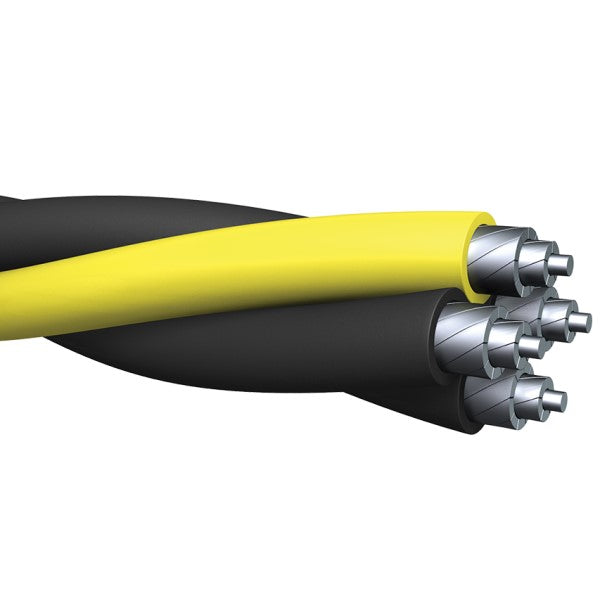

Encore Wire 381352501597 Quadplex Underground Distribution Cable 600 VAC (4) 250 kcmil

Product Description

The Encore Wire 381352501597 is a quadplex underground distribution cable rated for 600 VAC, featuring (4) 250 kcmil stranded aluminum conductors. This cable is suitable for underground electrical distribution in various applications. It has a black/yellow PVC coated jacket and polyethylene insulation.

• Compact stranded aluminum alloy 1350 series per ASTM-B230, ASTM-B231, ASTM-B609 and ASTM-B836
• Cross-linked polyethylene (XLPE) insulation per UL-854 and ANSI/ICEA S-105-692, black XLPE insulation or phase conductors, yellow XLPE insulation or grounded (neutral) conductor
• Rust code word

Product Highlights

Quadplex underground distribution cable with stranded aluminum conductors, XLPE insulation, and a PVC coated jacket.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 381352501597
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 319
• Conductor Size: 250 kcmil
• Conductor Type: Stranded Aluminum
• Country of Origin: USA
• Insulation Material: Polyethylene
• Jacket Color: Black/Yellow
• Jacket Material: PVC Coated
• Length: 1500 ft
• Mfg Standards/Approvals: UL File E-174428, Reach, RoHS Compliant
• Number of Conductors: 4
• Outside Diameter: 0.71 in
• Strands: 22
• Temperature Rating: 90 deg C
• Type: Quadplex
• Voltage Rating: 600 VAC
