Encore Wire 378341801440 Quadplex Overhead Service Drop Cable 600 VAC (4) 1/0 AWG Stranded Aluminum Conductor 500 ft L

Product Description

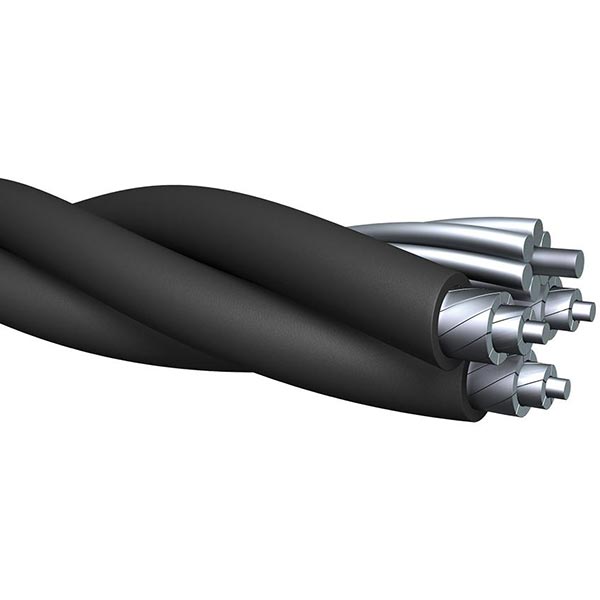

The Encore Wire 378341801440 is a Quadruplex overhead service drop cable with three black XLPE insulated aluminum conductors around a bare stranded acsr 1350 series alloy supporting neutral with steel support center wire. It features superior weather, abrasion, crush, and sunlight resistant XLPE insulation. This cable is suitable for energy distribution applications.

• Compact stranded aluminum alloy 1350 series per ASTM-B230, ASTM-B231, ASTM-B609 and ASTM-B836
• Stranded aluminum conductor steel reinforced (ACSR), 1350 series alloy bare supporting neutral with steel support center wire per ASTM-B230, ASTM-B232 neutral conductor
• Cross-linked polyethylene (XLPE) black insulation per ANSI/ICEA S-76-474, rated 90 deg C wet or dry

Product Highlights

Quadplex overhead service drop cable with XLPE insulation, ensuring durability and resistance to environmental factors. Ideal for overhead energy distribution.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 378341801440
• Country of Origin: US

Technical Specifications

• Amperage Rating: 240 A
• Application: Energy Distribution Applications
• Conductor Size: 1/0 AWG
• Conductor Type: Stranded Aluminum
• Country of Origin: US
• Insulation Material: Polyethylene
• Length: 500 ft
• Mfg Standards/Approvals: RoHS Compliant|REACH Compliant|UL Listed|Buy American Act Compliant
• Number of Conductors: 4
• Outside Diameter: 1.097 in
• Strands: 10x7
• Temperature Rating: 90 deg C
• Type: Quadplex
• Voltage Rating: 600 VAC
