Encore Wire 378241601297 2-3 Triplex Aluminum Wire 1800 ft Reel

Product Description

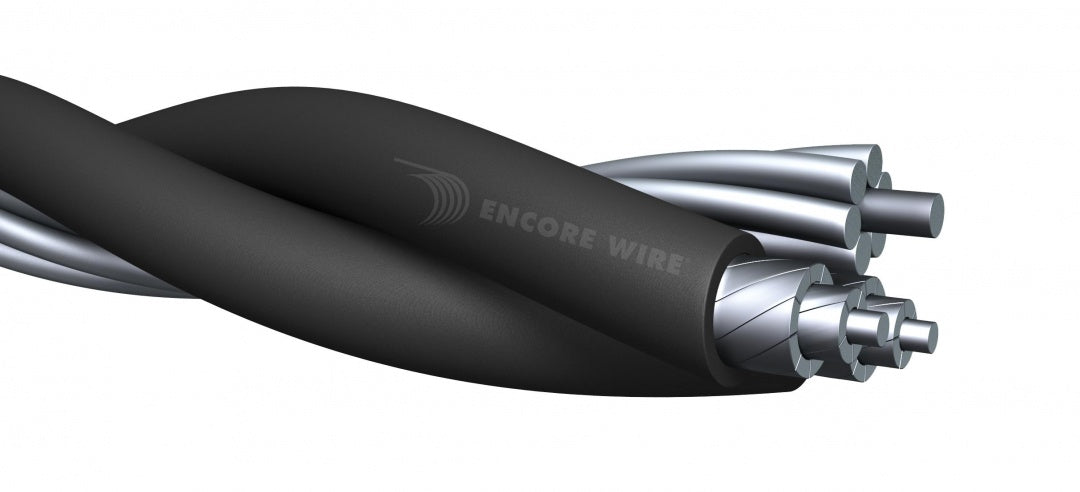

The Encore Wire 378241601297 is a Type ACSR Triplex service drop cable with reel packaging. This 600 VAC cable has three 2 AWG stranded aluminum conductors and an outside diameter of 0.771 inches, with a length of 1800 ft. It is suitable for energy distribution applications.

• Features compact stranded aluminum alloy 1350 series per ASTM-B230, ASTM-B231, ASTM-B609 and ASTM-B836
• Cross-linked polyethylene (XLPE) black insulation per ANSI/ICEA S-76-474, rated 90 deg C wet or dry
• Compliant with UL, RUS, REACH, RoHS, and Buy American Act standards

Product Highlights

Type ACSR Triplex cable with stranded aluminum conductors, polyethylene insulation and PVC jacket.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 378241601297
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 150 A
• Conductor Size: 2 AWG
• Conductor Type: Stranded Aluminum
• Insulation Material: Polyethylene
• Jacket Material: PVC
• Length: 1800 ft
• Number of Conductors: 3
• Outside Diameter: 0.771 in
• Packaging Type: Reel
• Strands: 7/7
• Temperature Rating: 90 deg C
• Type: Type ACSR Triplex
• Voltage Rating: 600 VAC
• Manufacturer: ENCORE WIRE
• Country of Origin: USA
• Mfg Standards/Approvals: UL Listed, RUS Accepted, Reach, RoHS Compliant
• Application: Energy Distribution Applications
