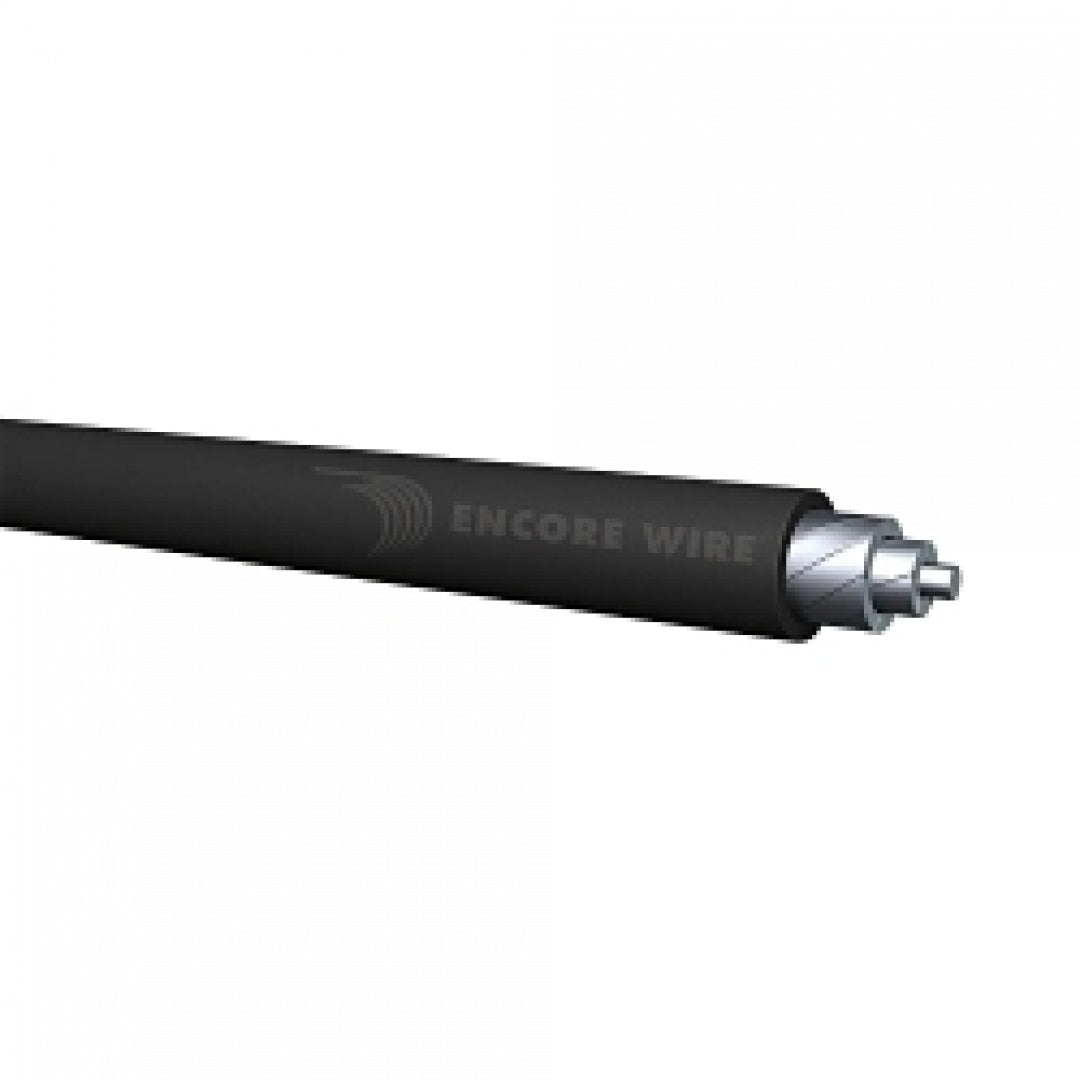

Encore Wire 341102501550 xhhw-2 building wire 250 kcmil 1000 ft reel

Product Description

The Encore Wire 341102501550 is a type XHHW-2 building wire with a 250 kcmil stranded aluminum conductor. This wire is rated for 600 VAC and features polyethylene insulation and a black jacket. It comes in a 1000 ft reel and is suitable for commercial and general purpose applications.

• Cross-linked polyethylene (XLPE) insulation per UL-44
• Compact stranded aluminum alloy 8000 series per ASTM-B800, ASTM-B801 and ASTM-B836
• Sunlight-resistant jacket

Product Highlights

600 VAC, 250 kcmil stranded aluminum conductor, polyethylene insulation, black jacket, 1000 ft reel.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 341102501550
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 230 A
• Conductor Size: 250 kcmil
• Conductor Type: Stranded Aluminum
• Insulation Material: Polyethylene
• Jacket Color: Black
• Length: 1000 ft Reel
• Number of Conductors: 1
• Outside Diameter: 0.65 in
• Packaging Type: Reel
• Strands: 22
• Temperature Rating: 90 deg C
• Type: Type XHHW-2
• Voltage Rating: 600 VAC
• Manufacturer: ENCORE WIRE
• Country of Origin: USA
• Mfg Standards/Approvals: cUL, UL File No. E177544, RoHS, REACH Compliant
