Encore Wire 341102101450 4/0 xhhw aluminum wire 1000 ft reel

Product Description

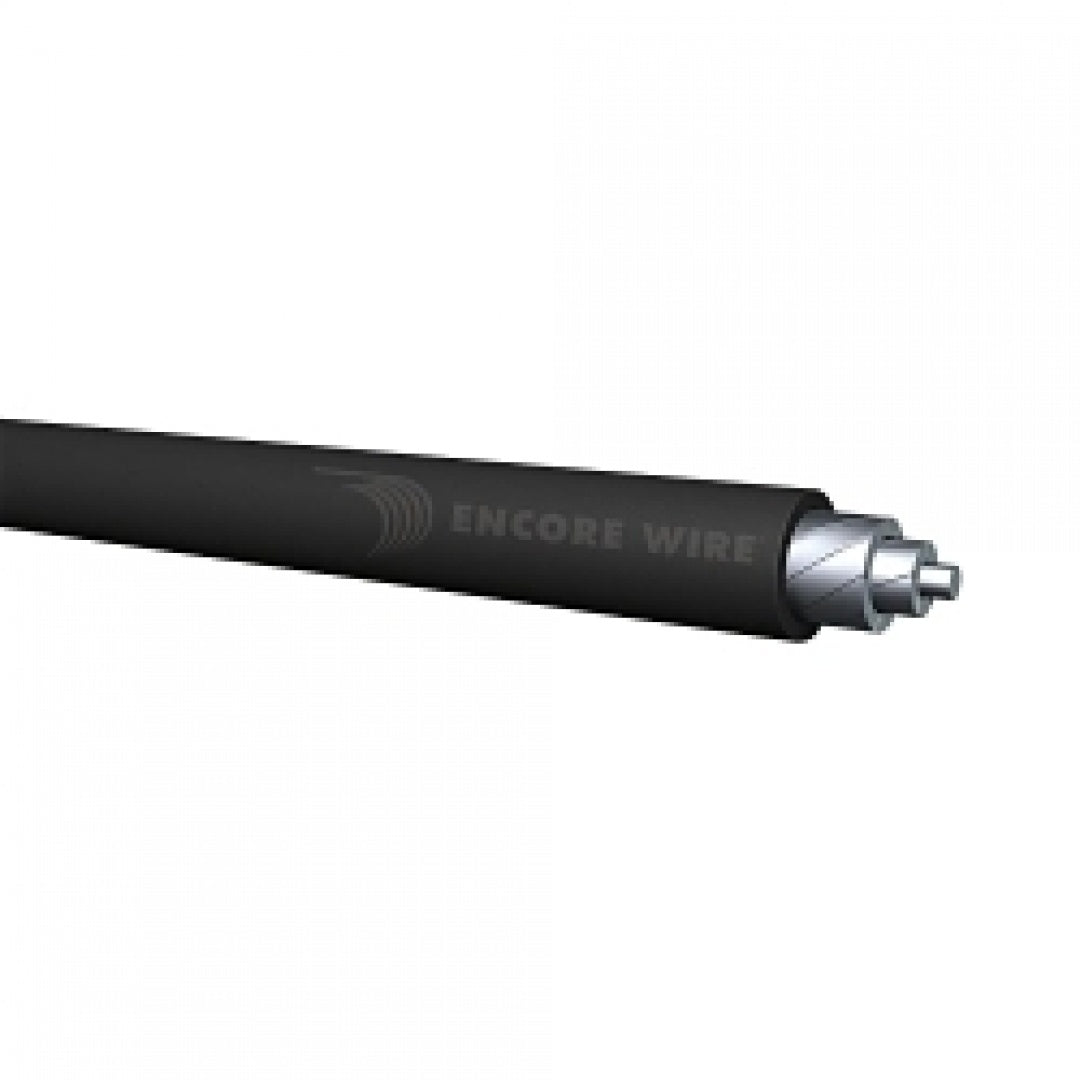

The Encore Wire 341102101450 is a building wire, type XHHW-2, supplied on a reel. This wire is rated for 600 VAC and 205 A. It features a single 4/0 AWG stranded aluminum conductor with polyethylene insulation and a black sunlight-resistant jacket, and is 1000 ft in length.

• Cross-linked polyethylene (XLPE) insulation per UL-44
• Compact stranded aluminum alloy 8000 series per ASTM-B800, ASTM-B801 and ASTM-B836
• Cross-linked polyethylene insulation material

Product Highlights

Type XHHW-2 building wire with a 4/0 AWG stranded aluminum conductor, polyethylene insulation, and a sunlight-resistant jacket.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 341102101450
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 205 A
• Conductor Size: 4/0 AWG
• Conductor Type: Stranded Aluminum
• Insulation Material: Polyethylene
• Jacket Color: Black
• Length: 1000 ft
• Number of Conductors: 1
• Outside Diameter: 0.585 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type XHHW-2
• Voltage Rating: 600 VAC
• Manufacturer: ENCORE WIRE
• Mfg Standards/Approvals: cUL, UL File No. E177544, RoHS, REACH Compliant
