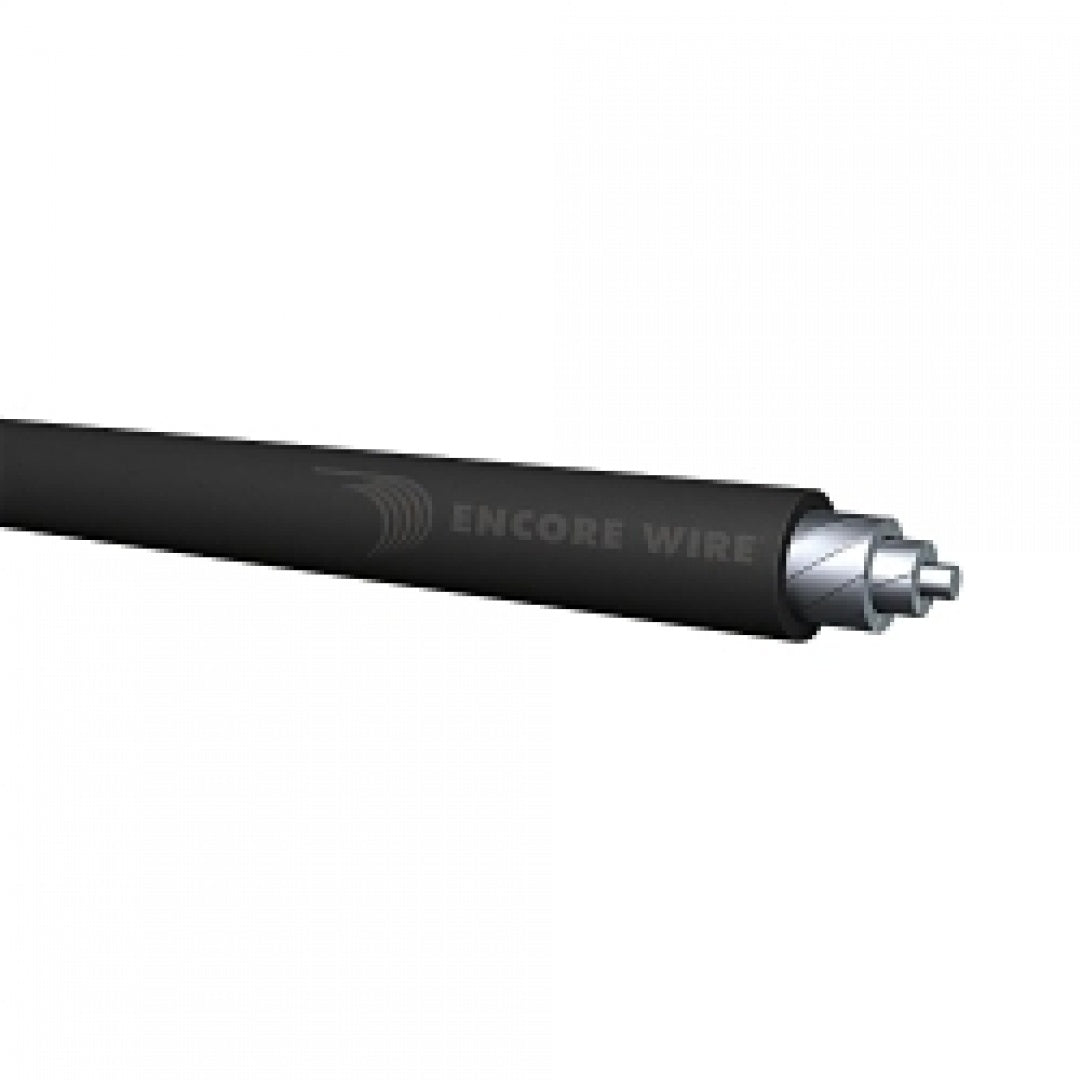

Encore Wire 341101701450 1 Str Xhhw-2 Alum 600 VAC 1 AWG

Product Description

The Encore Wire 341101701450 building wire is a type XHHW-2 wire with a voltage rating of 600 VAC. It features a single 1 AWG stranded aluminum conductor and polyethylene insulation with a sunlight-resistant jacket. This wire is supplied on a 1000 ft reel and is suitable for commercial and general-purpose applications in conduit and tubing.

• Cross-linked polyethylene (XLPE) insulation per UL-44
• Compact stranded aluminum alloy 8000 series per ASTM-B800, ASTM-B801 and ASTM-B836
• Cross-linked polyethylene insulation material

Product Highlights

Type XHHW-2 building wire with 600 VAC, 1 AWG stranded aluminum conductor, and polyethylene insulation. Ideal for services, feeders, and branch circuit wiring applications.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 341101701450
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 115 A
• Conductor Size: 1 AWG
• Conductor Type: Stranded Aluminum
• Insulation Material: Polyethylene
• Jacket Color: Black
• Length: 1000 ft
• Number of Conductors: 1
• Outside Diameter: 0.409 in
• Packaging Type: Reel
• Strands: 8
• Temperature Rating: 90 deg C
• Type: Type XHHW-2
• Voltage Rating: 600 VAC
• Country of Origin: USA
• Mfg Standards/Approvals: cUL, UL File No. E177544, RoHS, REACH Compliant
