Encore Wire 304352111440 4/0-4/0-4/0-2/0 Ser Al Wire 500 feet Reel

Product Description

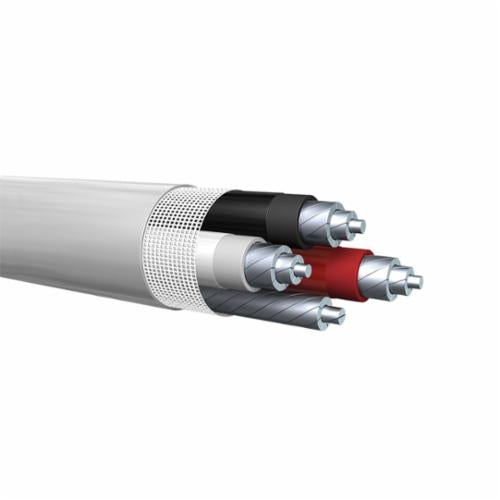

The Encore Wire 304352111440 is a service entrance cable, Type SE Style R, supplied on a 500 ft reel. This cable is rated for 600 VAC and 205 A, featuring 4 stranded aluminum conductors ranging from 2/0 to 4/0 AWG. It has a 1.425 in outside diameter and is constructed with PVC insulation and a gray PVC jacket, suitable for applications requiring a 90 deg C temperature rating.

• Features compact stranded aluminum alloy 8000 series per ASTM-B800, ASTM-B801 and ASTM-B836
• High dielectric strength, heat and moisture resistant PVC rated 90 deg C wet or dry, meeting the requirements or UL-83 for THHN or THWN-2 wire
• A tough, polyamide, nylon outer covering per UL-83

Product Highlights

Ideal for above ground electrical service from the utility power service point to the meter or service entrance panel in residential applications.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 304352111440
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 205 A
• Conductor Size: 2/0 to 4/0 AWG
• Conductor Type: Stranded Aluminum
• Insulation Material: PVC
• Jacket Color: Gray
• Jacket Material: PVC
• Length: 500 ft
• Number of Conductors: 4
• Outside Diameter: 1.425 in
• Packaging Type: Reel
• Temperature Rating: 90 deg C
• Type: Type SE Style R
• Voltage Rating: 600 VAC
• Manufacturer: ENCORE WIRE
