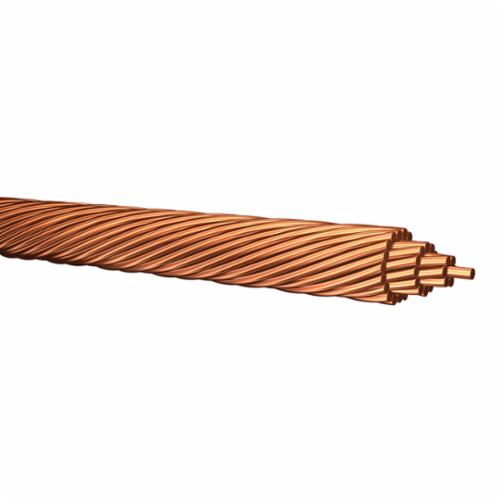

Encore Wire 172101200250 bare copper wire 600 VAC 1000 ft reel

Product Description

The ENCORE WIRE 172101200250 is a bare copper wire with 600 VAC, featuring (1) 6 AWG bare stranded copper conductor, and comes on a 1000 ft reel. It is suitable for commercial and overhead electrical transmission and distribution system applications.

• Highest conductivity per unit are or all common commercial metal
• Excellent corrosion resistance
• Flexible, easily worked and formed into place

Product Highlights

This bare copper wire is flexible, corrosion resistant and has high conductivity, making it ideal for electrical applications.

Product Information

Standard Information

• Brand: ENCORE WIRE
• Manufacturer Part Number: 172101200250
• Country of Origin: USA

Technical Specifications

• Conductor Size: 6 AWG
• Conductor Type: Bare Stranded Copper
• Country of Origin: USA
• Length: 1000 ft Reel
• Mfg Standards/Approvals: UL Listed, ASTM-B3, ASTM-B8, ASTM-B787, MasterSpec Division 26 Sections 260519, 26052, Reach, RoHS Compliant
• Number of Conductors: 1
• Outside Diameter: 0.184 in
• Resistance: 0.403 Ohm
• Strands: 7
• Voltage Rating: 600 VAC
• Application: Commercial, Overhead Electrical Transmission and Distribution System Applications
• Current Rating: 130 A
• Standard: RoHS Compliant, REACH Compliant, UL Listed, ASTM-B3, B8, B787 Master Specification Division 26 Sections 260519, 26052, Buy American Act Compliant
• Wire Length: 1000 FT
