Encore Wire 139100805460 thhn wire 20 ampacity 500 ft reel

Product Description

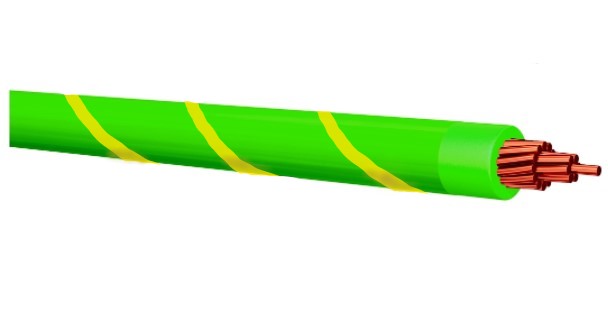

The Encore Wire 139100805460 is a 12 AWG, stranded THHN wire with 20 ampacity, supplied on a 500 ft reel. Constructed with a slick nylon outer jacket for easy pulling and rated gasoline and oil-resistant. Suitable for general purpose applications as defined by the National Electrical Code, new construction, or rewiring for 600-volt applications.

• Features a slick nylon outer jacket for easy pulling.
• Rated gasoline and oil-resistant.
• Appropriate for use in wet or dry locations at temperatures not to exceed 90 C or not to exceed 75 C in oil or coolants.

Product Highlights

12 AWG THHN wire with stranded copper conductors, a nylon jacket, and is suitable for 600-volt applications.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 139100805460

Technical Specifications

• Conductor Material: Copper
• Conductor Type: Stranded Copper
• Jacket Color: Green w/Yellow Stripe
• Jacket Material: Nylon
• Length: 500 ft
• Mfg Standards/Approvals: UL-83, UL-1063, UL-758, AWM Spec 1316, 1317, 1318 1319, 1320, 1321, ASTM Stranding Class B3, B8, B787, Federal Specification A-A-59544, Canadian Standards Association C22.2 No. 75, NEMA WC70/ICEA S-95-658, Institute of Electrical and Electronics Engineers, ARRA 2009; Section 1605 "Buy American" Compliant
• Number of Conductors: 1
• Wire Size: 12 AWG
• Wire Type: THHN
