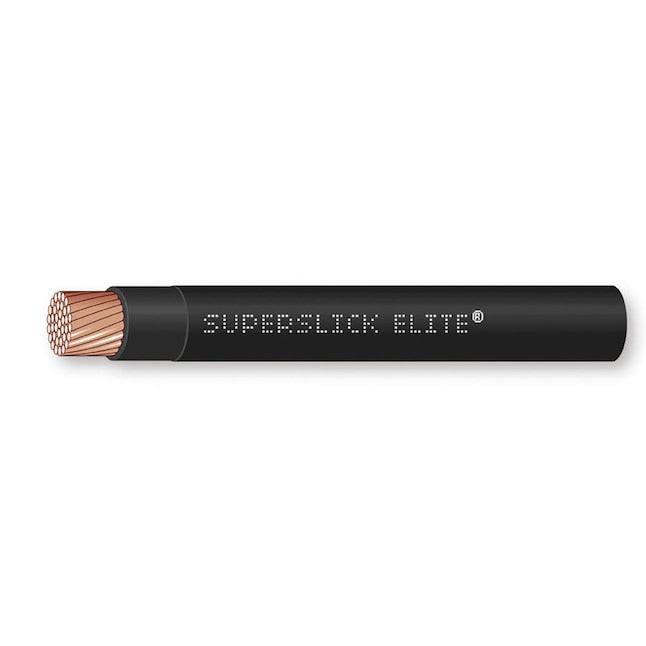

Encore Wire 118101701440 1 AWG Stranded Black THHN Wire 500 feet Reel

Product Description

Encore Wire 118101701440 is a type THHN/THWN-2 building wire intended for general purpose applications as defined by the National Electrical Code (NEC). It is permitted for new construction or rewiring for 600-volt applications. The conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90 C or not to exceed 75 C in oil or coolants.

• Slick Nylon outer jacket for easy pulling.
• All sizes rated gasoline and oil resistant II.
• Solid, uncoated copper conductors per ASTM-B3

Product Highlights

This THHN wire features a stranded, uncoated copper conductor and a color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-83.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 118101701440

Technical Specifications

• Wire Gauge: 1 AWG
• Conductor Type: Stranded Copper
• Insulation Material: Polyvinyl Chloride (PVC)
• Jacket Material: Nylon
• Voltage: 600 V
• Standards: UL-83, UL-1063, UL-758, AWM Spec 1316, 1317, 1318, 1319, 1320, 1321 ASTM Stranding Class B3, B8, B787, Federal Specification A-A-59544 Canadian Standards Association C22.2 No. 75, NEMA WC70/ICEA S-95-658 UL 1685-FT4/IEEE 1202
• Operating Temperature: 90 C (dry locations), 75 C (oil or coolants), 60 C (wet locations or where exposed to oils or coolants)
• Flame Test: UL 1685-FT4/IEEE 1202 (70,000 Btu/hr) Flame Test (1/0 AWG and larger) ICEA T-29-520 (210,000 Btu/hr)
• Application: New construction or re-wiring
• Resistant Properties: Gasoline Resistant, Oil Resistant
• Sunlight Resistant: 6 AWG and larger Sunlight Resistant in all colors
