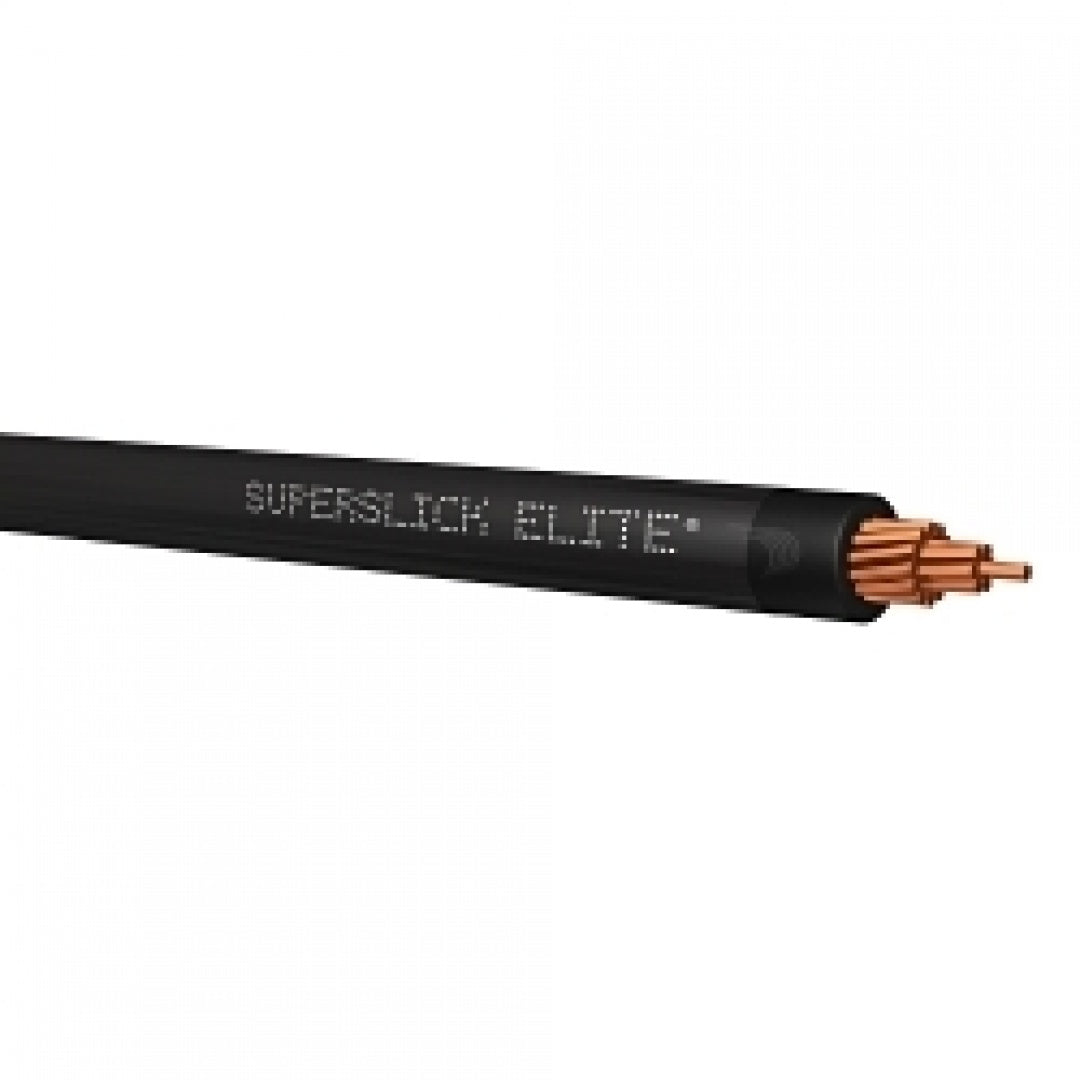

Encore Wire 118101601450 copper THWN 2 stranded 1000 ft

Product Description

The Encore Wire 118101601450 is a type THWN-2 building wire with a voltage rating of 600 VAC. It features a stranded copper conductor with PVC insulation and a nylon jacket. This wire is suitable for commercial applications and conforms to various industry standards. It has a 130 A amperage rating and a temperature rating of 90 deg C.

• Color code polyvinyl chloride (PVC), heat and moisture resistant, flame retardant compound
• Stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787
• A tough, polyamide, nylon outer covering per UL-83 and UL-1063

Product Highlights

THWN-2 building wire with stranded copper conductor, PVC insulation, and nylon jacket, ideal for various commercial applications.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 118101601450
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 130 A
• Conductor Size: 2 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Color: Black
• Jacket Material: Nylon
• Length: 1000 ft
• Number of Conductors: 1
• Outside Diameter: 0.378 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THWN-2
• Voltage Rating: 600 VAC
• Manufacturer: ENCORE WIRE
• Country of Origin: USA
• Mfg Standards/Approvals: UL File E-123774, E-156878, E-156879, cUL Listed, Reach, RoHS Compliant
